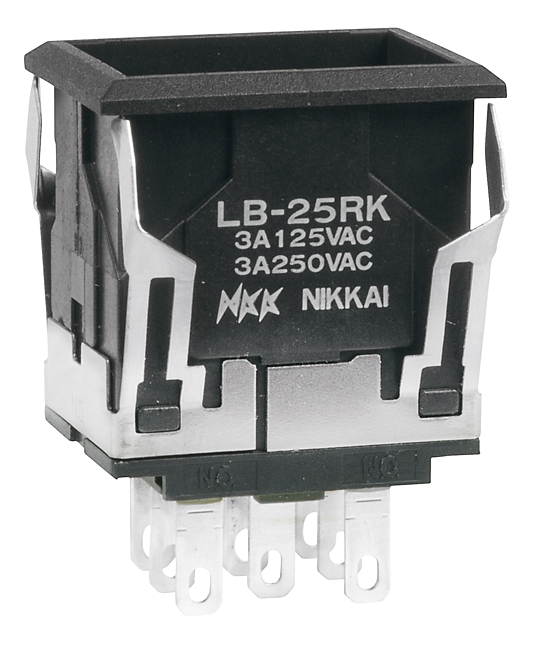

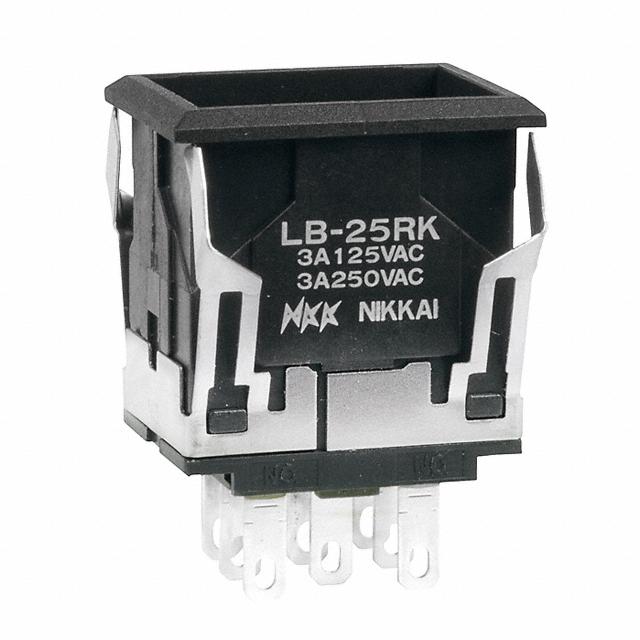

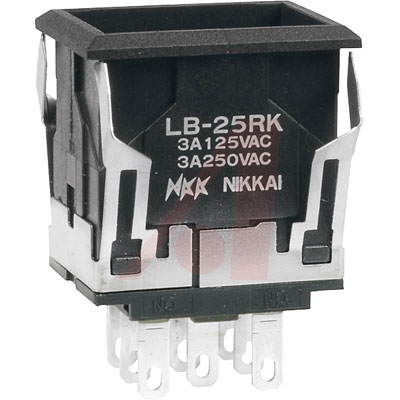

NKK SWITCHES LB25RKW01 按钮开关, 非发光, DPDT, 3A, 250V
Rectangular 16.2 x 22.4 mm panel mounted pushbutton switch bodies offer versatile solutions to panel switch design. Caps and bright LED lamps, both sold separately, are available in red, amber and green.
欧时:
Illuminated Pushbuttons DPDT,3A 250V AC
立创商城:
LB25RKW01
贸泽:
按钮开关 DPDT On-On RECTANG
e络盟:
按钮开关, 非发光, DPDT, 3A, 250V
艾睿:
Quickly reset and disrupt processes by mechanically pressing this LB25RKW01 push button switch from NKK Switches. It has a DPDT configuration. This device has a maximum current rating of 3 A @ 250VAC 30VDC. This push switch has an operating temperature range of -25 °C to 70 °C. The LB25RKW01 push switch has a quick connect/solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 34 mm tall.
Allied Electronics:
Switch part; pushbtn body; DPDT; Mom; Cap/LED sold separate; 16.2x22.4mm pnl mnt
Chip1Stop:
Switch Push Button ON ON DPDT Rectangular Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel Mount
Verical:
Switch Push Button ON ON DPDT Round Button 3A 250VAC 30VDC Momentary Contact Quick Connect/Solder Lug Panel
Newark:
# NKK SWITCHES LB25RKW01 Illuminated Pushbutton Switch, DPDT, On-On, 3 A, 250 V
Powell:
STD SIZE PUSHBUTTON/ILLUMINATED/SNAP-IN
触点电镀 Gold
接触器类型 Button
额定电流 3 A
绝缘电阻 ≥200MΩ @500VDC
排数 2
方向 Vertical
触点类型 DPDT
针脚数 2
接触电阻 ≤50 MΩ
触点额定电流 3.00 A
额定电流Max 3A @250VAC, 30VDC
工作温度Max 70 ℃
工作温度Min -25 ℃
接触电阻Max 50 mΩ
安装方式 Lug, Snap-In
封装 -
高度 34 mm
封装 -
颜色 Black
触点材质 Silver
工作温度 -25℃ ~ 50℃
包装方式 Bulk
RoHS标准
含铅标准 Contains Lead
REACH SVHC版本 2015/12/17
