LB15CKW01-5F-JF

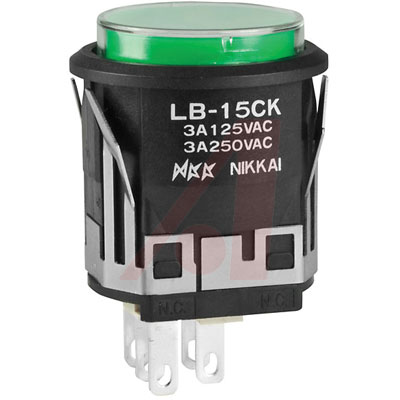

NKK SWITCHES  LB15CKW01-5F-JF  按钮开关, 发光, SPDT, 3A, 250V

This miniature pushbutton switch is available in momentary or latching actions. Choice of square, round or rectangular bezels and caps to fit panel design. Bright LED lamp may be changed from the front of the panel. Snap-action mechanism provides audible and tactile feedback. Molded terminals seal out flux, dust and other contaminants.

立创商城:
LB15CKW01-5F-JF

艾睿:
Never worry about turning off components or cutting off certain sections of a circuit with this LB15CKW01-5F-JF push button switch from NKK Switches. This device has a maximum current rating of 3 A @ 250VAC 30VDC. It has a SPDT configuration. This push switch has a minimum operating temperature of -25 °C and a maximum of 50 °C. The LB15CKW01-5F-JF push switch has a quick connect/solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 23.7 mm long, 34 mm tall and 23.7 mm deep.

Allied Electronics:
Switch; P/B; SPDT; ON-ON; Rnd; Blk Body; Grn LED; 2V; Clr/Grn Cap; 3A; 125VAC; QC

Verical:
Switch Push Button ON ON SPDT Round Button 3A 250VAC 30VDC Momentary Contact Panel Mount Quick Connect/Solder Lug

Newark:
# NKK SWITCHES  LB15CKW01-5F-JF  Illuminated Pushbutton Switch, SPDT, On-On, 3 A, 250 V, Green

Powell:
STD SIZE PUSHBUTTON/ILLUMINATED/SNAP-IN
