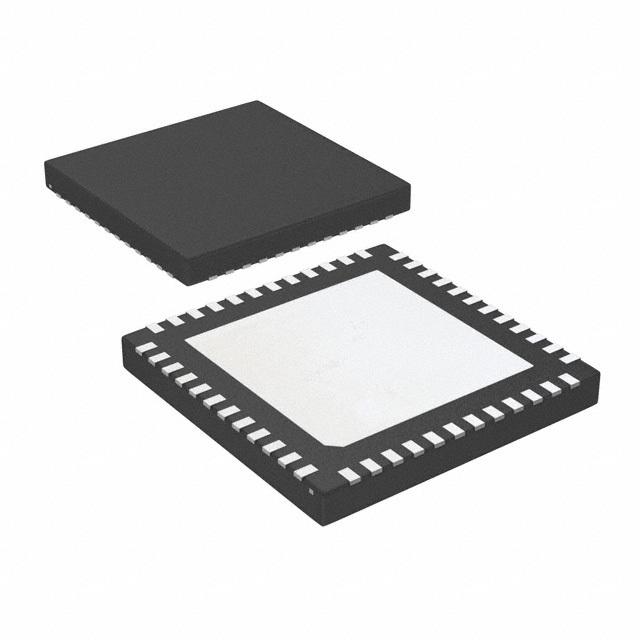

TEXAS INSTRUMENTS  LMH0340SQE/NOPB  芯片, 信号串行器/驱动器, 3.465V, LLP-48

The is a 3Gbps SDI Serializer and Driver with LVDS interface. It supports 5-bit LVDS interfaces with FPGAs. A FPGA host will format data with supplied IP such that the output of the LMH0340 is compliant with the requirements of DVB-ASI, SMPTE 259M-C, SMPTE 292M and SMPTE 424M standards. The interface between the SER Serializer and the FPGA consist of a 5-bit wide LVDS data bus, an LVDS clock and a SMBus interface. This SER device includes an integrated cable driver which is fully compliant with all of the SMPTE specifications listed above. The FPGA-Attach Ser/Des family is supported by a suite of IP which allows the design engineer to quickly develop video applications using the Ser/Des products.

.

Output compliant with SMPTE 424M, SMPTE 292M, SMPTE 259M-C and DVB-ASI

.

LVDS interface to host FPGA

.

No external VCO or clock ref required

.

Integrated variable output cable driver

.

Integrated TXCLK PLL cleans clock noise

.

440mW Typical power dissipation

.

30ps Typical output jitter HD, 3G

.

Green product and no Sb/Br

Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
