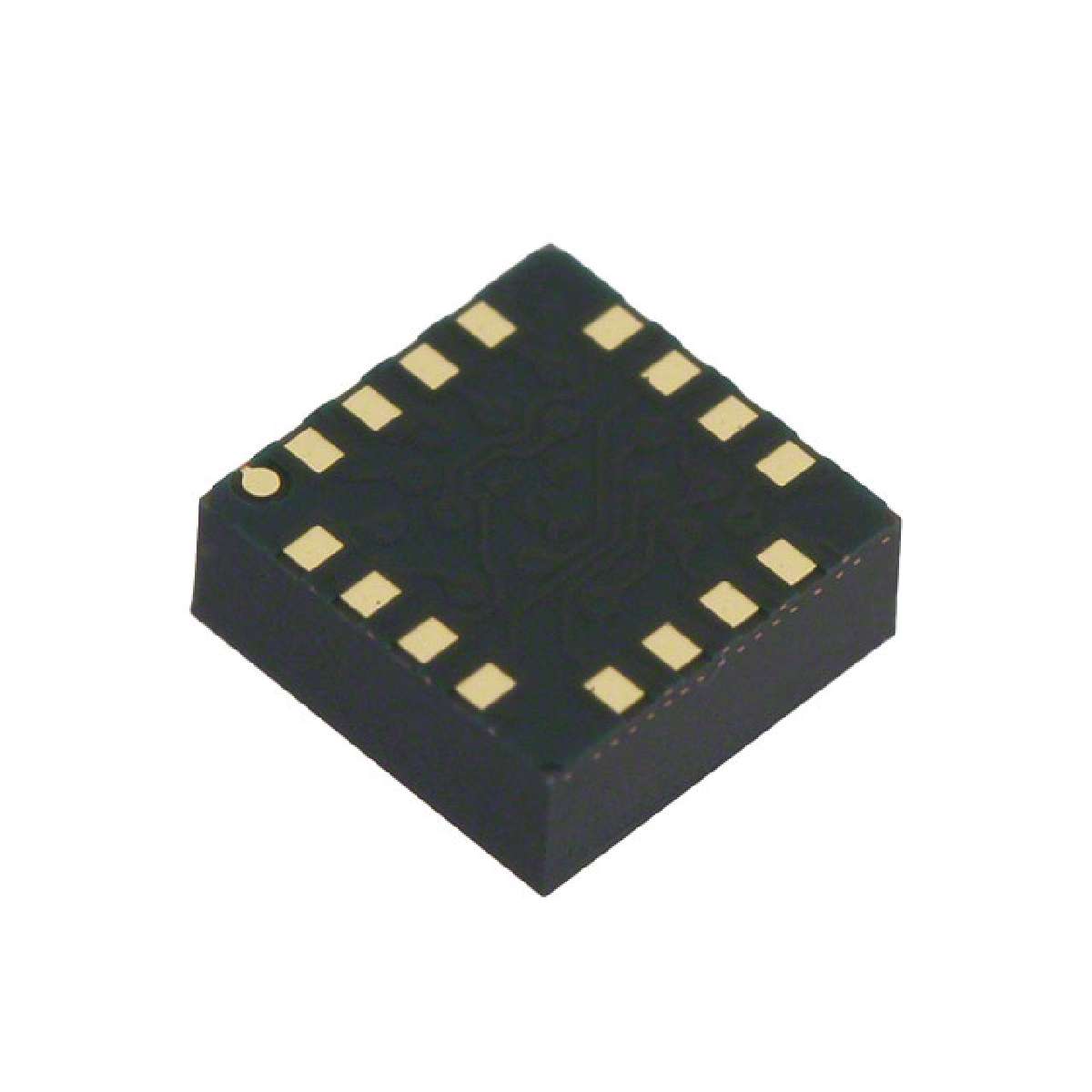

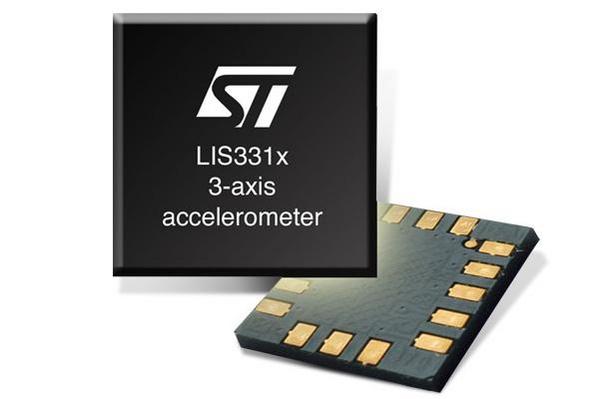

STMICROELECTRONICS LIS331DL 加速度计, MEMS, 3轴, 数字, X, Y, Z, ± 2g, ± 8g, 2.16 V, 3.6 V, LGA
The is an Adapter Board for a standard DIL24 socket and designed to facilitate the evaluation of MEMS device. The board offers an effective solution for fast system prototyping and device evaluation directly within the users own application. It can be plugged into a standard DIL 24 socket. The adapter provides the complete adapter board pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line. This adapter is supported by the STEVALMKI109V2 motherboard which includes a high performance 32bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface or dedicated software routines for customized applications.
电源电压DC 2.16V min
针脚数 16
带宽 50Hz ~ 200Hz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.16V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.16 V
安装方式 Surface Mount
引脚数 16
封装 VFLGA-16
高度 1 mm
封装 VFLGA-16
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Each
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LIS331DL ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LIS331DLH 意法半导体 | 类似代替 | LIS331DL和LIS331DLH的区别 |
LIS331DLM 意法半导体 | 类似代替 | LIS331DL和LIS331DLM的区别 |
