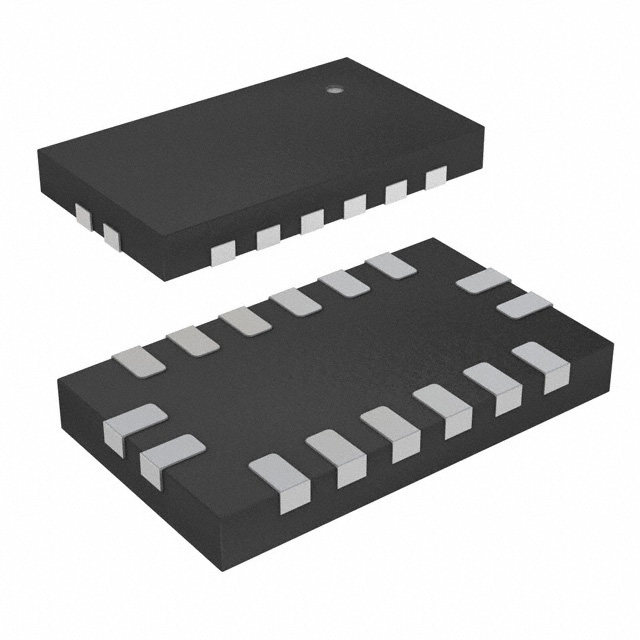

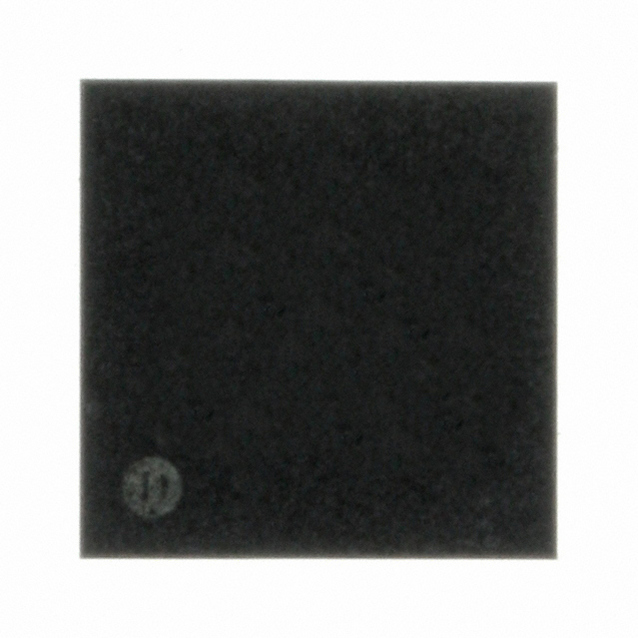

LIS 系列 LGA16 SMD ±2g ±6 3轴 3.6 V 数字输出 线性加速度计
This accelerometer from STMicroelectronics is an integrated circuit that measures the acceleration of an object to which it is attached. It has a digital output. This device"s minimum operating supply voltage of 2.16 V, while its maximum is 3.6 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery.
供电电流 0.65 mA
带宽 10Hz ~ 640Hz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.16V ~ 3.6V
电源电压Max 3.6 VDC
电源电压Min 2.16 VDC
安装方式 Surface Mount
引脚数 16
封装 LGA-16
长度 7.5 mm
宽度 4.4 mm
高度 0.7 mm
封装 LGA-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LIS3LV02DLTR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LIS3LV02DL 意法半导体 | 类似代替 | LIS3LV02DLTR和LIS3LV02DL的区别 |
