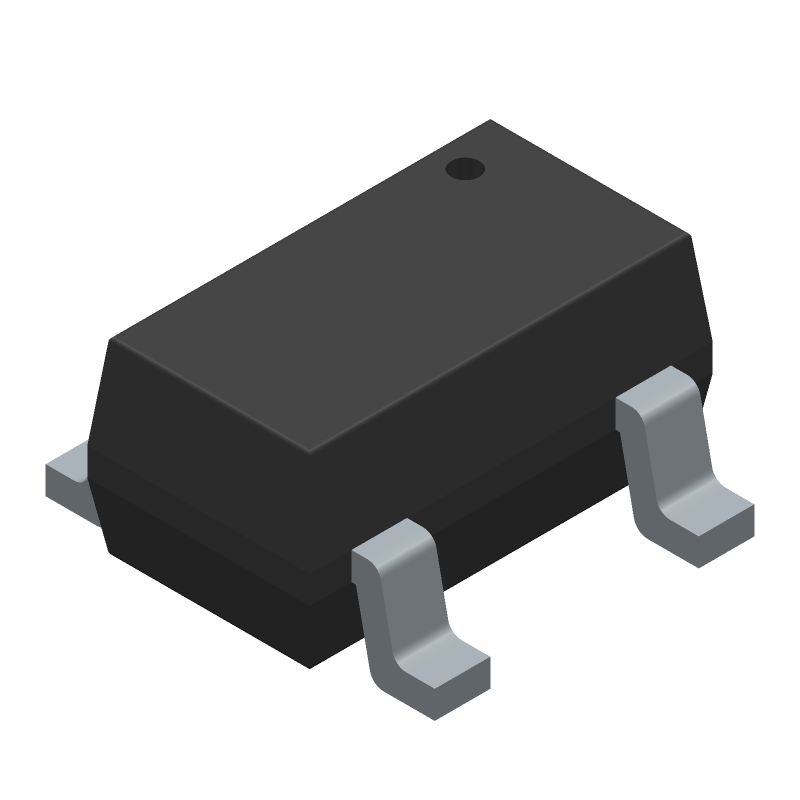

TEXAS INSTRUMENTS LM26CIM5-SPA/NOPB 温度传感器芯片, 电压, ± 3°C, -55 °C, +125 °C, SOT-23, 5 引脚
The is a precision, single digital-output, low power Thermostat comprised of an internal reference, DAC, temperature sensor and comparator. The LM26 has one digital output, one digital input and one analogue output. The digital output stage can be factory programmed to be active HIGH or LOW. A VTEMP analogue output provides a voltage that is proportional to temperature and has a -10.82mV/°C output slope.
电源电压DC 5.00 V
供电电流 16 µA
针脚数 5
耗散功率 500 mW
静态电流 40.0 µA
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
精度 ±3 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 工业, 传感与仪器, 热管理, 计算机和计算机周边, HVAC, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM26CIM5-SPA/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM26CIM5-RPA 德州仪器 | 完全替代 | LM26CIM5-SPA/NOPB和LM26CIM5-RPA的区别 |
LM26CIM5X-SPA 德州仪器 | 完全替代 | LM26CIM5-SPA/NOPB和LM26CIM5X-SPA的区别 |
