LM56CIMMX/NOPB

具有风扇控制功能的 3°C 双路输出电阻可编程温度开关 8-VSSOP -40 to 125

The LM56 is a precision low power thermostat. Two stable temperature trip points VT1 and VT2 are generated by dividing down the LM56 1.250V bandgap voltage reference using 3 external resistors. The LM56 has two digital outputs. OUT1 goes LOW when the temperature exceeds T1 and goes HIGH when the the temperature goes below T1–THYST. Similarly, OUT2 goes LOW when the temperature exceeds T2 and goes HIGH when the temperature goes below T2–THYST. THYST is an internally set 5°C typical hysteresis.

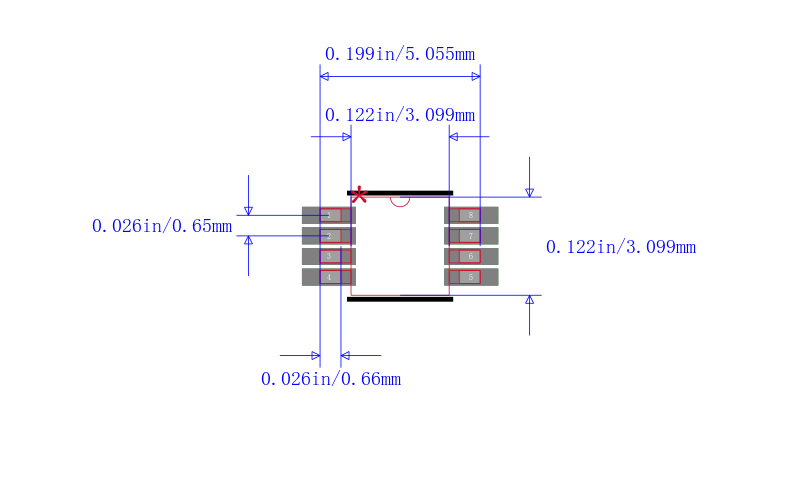

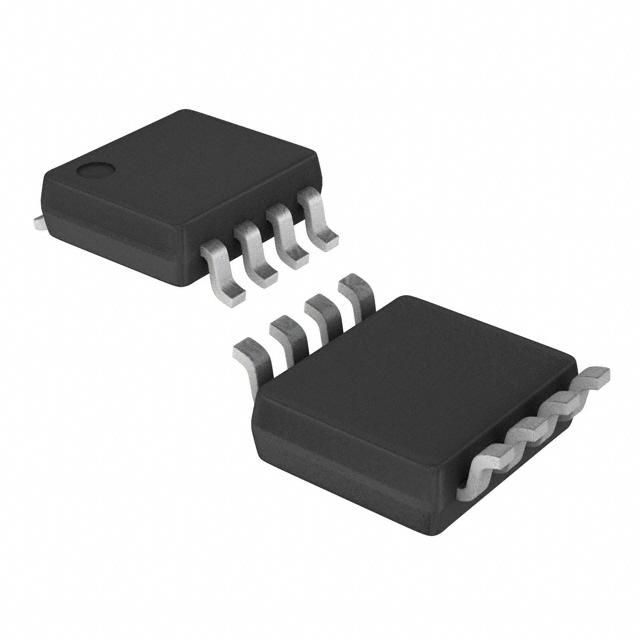

The LM56 is available in an 8-lead VSSOP surface mount package and an 8-lead SOIC.
