LM57FPWR

LM57FPWR图片1
LM57FPWR图片2
LM57FPWR图片3
LM57FPWR图片4
LM57FPWR图片5
LM57FPWR概述

具有电阻可编程温度开关的 ±0.7°C 温度传感器 8-TSSOP -50 to 150

Thermostat Programmable Active High, Active Low Open Drain, Push-Pull 8-TSSOP


立创商城:
LM57FPWR


德州仪器TI:
±0.7°C Temperature Sensor with Resistor-Programmable Temperature Switch


得捷:
THERMOSTAT PROG ACT HI/LO 8TSSOP


贸泽:
Board Mount Temperature Sensors ?0.7?C Temperature Sensor with Resistor-Programmable Temperature Switch 8-TSSOP -50 to 150


艾睿:
Temp Sensor AnalogVoltage 8-Pin WSON EP T/


安富利:
Thermostat ±2.3°C Open Drain/Push Pull SMD 8-Pin TSSOP T/R


Verical:
Temp Sensor Analog 8-Pin TSSOP T/R


LM57FPWR中文资料参数规格
技术参数

供电电流 24 µA

输出电流Max 5 mA

工作温度Max 150 ℃

工作温度Min 50 ℃

精度 ±2.3 ℃

电源电压 2.4V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 TSSOP-8

外形尺寸

封装 TSSOP-8

物理参数

工作温度 -50℃ ~ 150℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

LM57FPWR引脚图与封装图
LM57FPWR引脚图

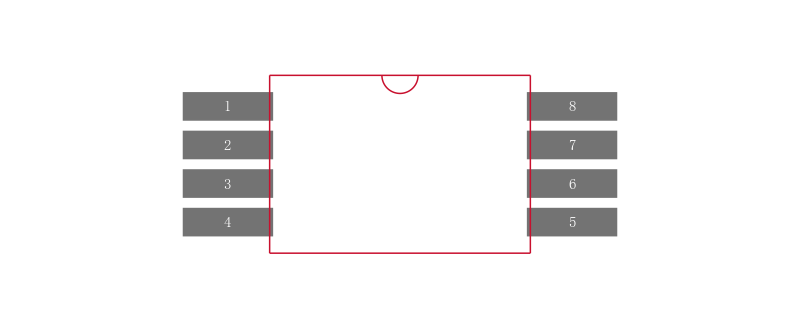

LM57FPWR封装图
LM57FPWR封装焊盘图
在线购买LM57FPWR
型号: LM57FPWR
制造商: TI 德州仪器
描述:具有电阻可编程温度开关的 ±0.7°C 温度传感器 8-TSSOP -50 to 150
替代型号LM57FPWR
型号/品牌 代替类型 替代型号对比

LM57FPWR

TI 德州仪器

当前型号

当前型号

LM57FPW

德州仪器

完全替代

LM57FPWR和LM57FPW的区别
