板上安装温度传感器 HW Monitor
The is a Hardware Monitor has a two wire digital interface compatible with SMBus 2.0. Using an 8-bit ΣΔ ADC, the LM96000 measures the temperature of two remote diode connected transistors as well as its own die, the VCCP, 2.5V, 3.3VSBY, 5.0V and 12V supplies internal scaling resistors. To set fan speed, the LM96000 has three PWM outputs that are each controlled by one of three temperature zones. High and low PWM frequency ranges are supported. The LM96000 includes a digital filter that can be invoked to smooth temperature readings for better control of fan speed. The LM96000 has four tachometer inputs to measure fan speed. Limit and status registers for all measured values are included.
电源电压DC 3.30 V
输出电压 400 mV
输出电流 ≤8.00 mA
供电电流 530 µA
位数 8
静态电流 530 µA
工作温度Max 85 ℃
工作温度Min 0 ℃
电源电压 3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount

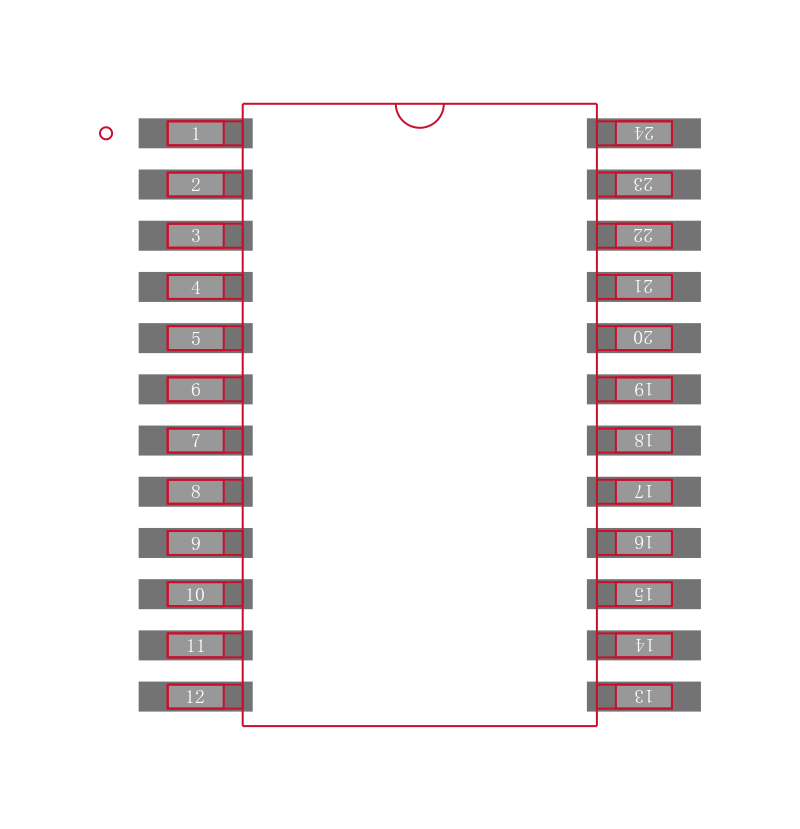

引脚数 24
封装 TSSOP-24
封装 TSSOP-24
工作温度 0℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM96000CIMT/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM96000CIMTX/NOPB 德州仪器 | 完全替代 | LM96000CIMT/NOPB和LM96000CIMTX/NOPB的区别 |
LM96000CIMTX 德州仪器 | 完全替代 | LM96000CIMT/NOPB和LM96000CIMTX的区别 |
LM96000CIMT 德州仪器 | 完全替代 | LM96000CIMT/NOPB和LM96000CIMT的区别 |
