STMICROELECTRONICS LM335D 温度传感器芯片, 电压, 0°C 至 +1°C, -40 °C, +100 °C, SOIC, 8 引脚
The is a Precision Temperature Sensor which can be easily calibrated. They operate as a 2-terminal Zener and the breakdown voltage is directly proportional to the absolute temperature at 10mV/°K. The circuit has a dynamic impedance of less than 1R and operates within a range of current from 450µA to 5mA without alteration of its characteristics. Calibrated at +25°C, the device has a typical error of less than 1°C over a 100°C temperature range. The LM335 has a linear output.
- .
- Directly calibrated in °K
输出电压 3.04 V

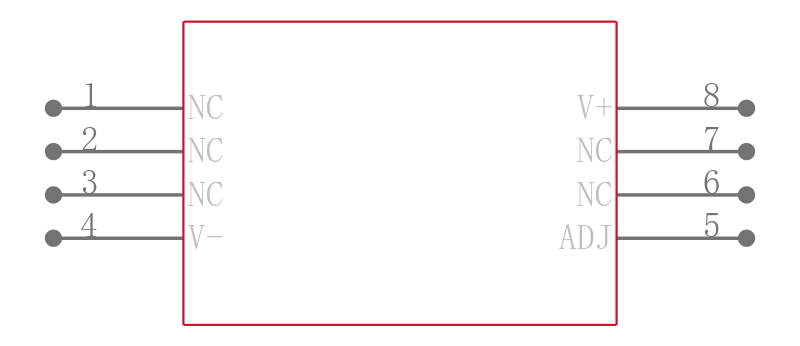

针脚数 8
工作温度Max 100 ℃
工作温度Min -40 ℃
精度 ±2 ℃
电源电压 2.92V ~ 3.04V
电源电压Max 40 VDC
电源电压Min 5 VDC
安装方式 Surface Mount
引脚数 8

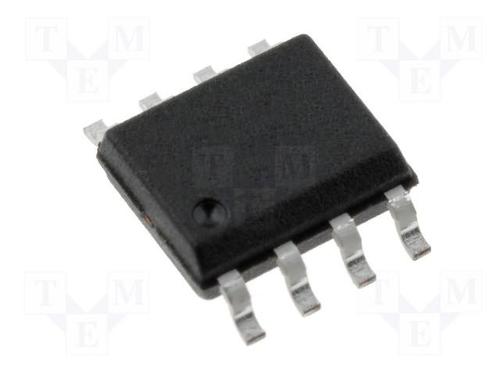

封装 SOIC-8
封装 SOIC-8
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tube
制造应用 传感与仪器, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM335D ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LM335AD 意法半导体 | 完全替代 | LM335D和LM335AD的区别 |
LM335ADT 意法半导体 | 类似代替 | LM335D和LM335ADT的区别 |
LM335MX 德州仪器 | 类似代替 | LM335D和LM335MX的区别 |
