L6566BTR

SMPS

Description

The L6566B is an extremely versatile current-mode primary controller ICs, specifically designed for high-performance offline flyback converters. It is also suited for single-stage single-switch input-current-shaping converters single-stage PFC for applications supposed to comply with EN61000-3-2 or JEITA-MITI regulations.

Features

■ Selectable multi-mode operation: fixed frequency or quasi-resonant

■ On-board 700 V high-voltage start-up

■ Advanced light load management

■ Low quiescent current < 3 mA

■ Adaptive UVLO

■ Line feedforward for constant power capability vs mains voltage

■ Pulse-by-pulse OCP, shutdown on overload latched or autorestart

■ Transformer saturation detection

■ Programmable frequency modulation for EMI reduction

■ Latched or autorestart OVP

■ Brownout protection

■ -600/+800 mA totem pole gate driver with active pull-down during UVLO

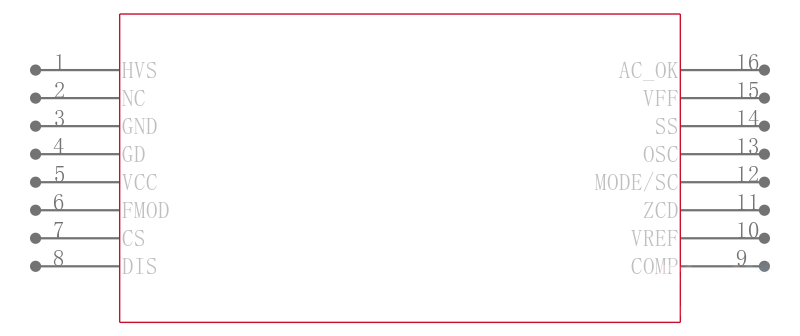

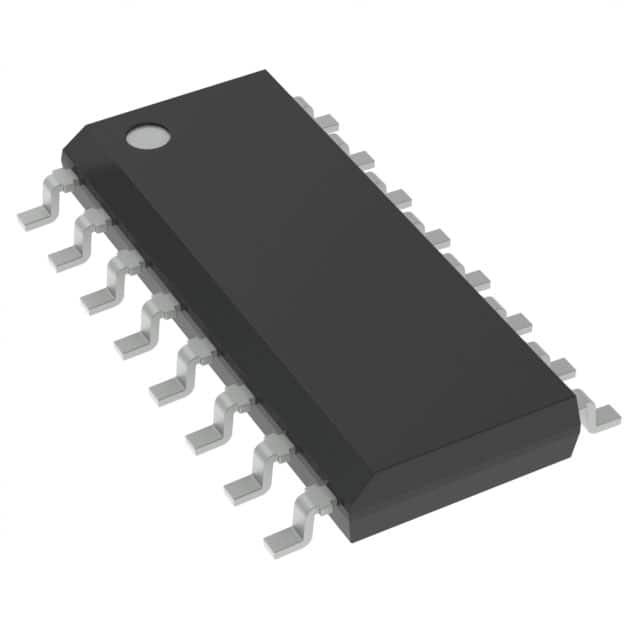

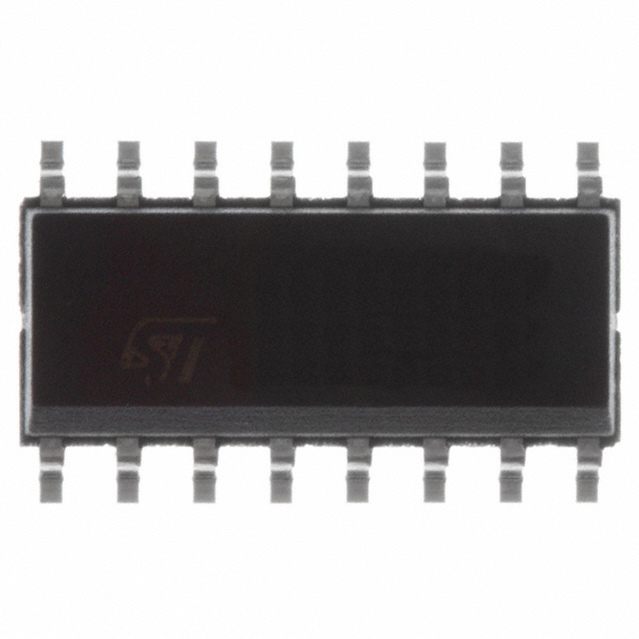

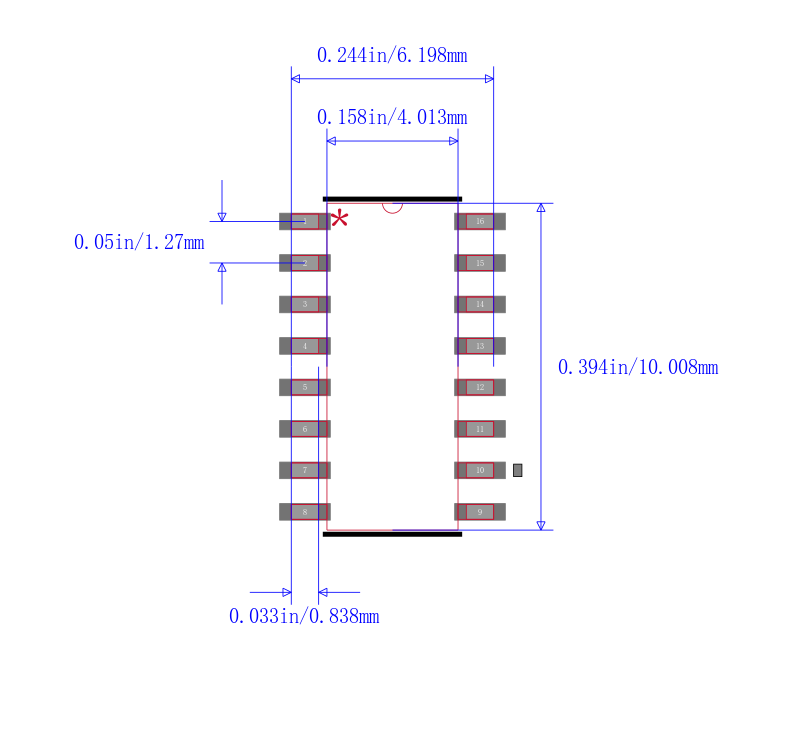

■ SO16N package

Applications

■ Hi-end AC-DC adapter/charger

■ LCD TV/monitor, PDP

■ digital consumer, IT equipment

■ single-stage PFC
