LDO(低压降)线性电压调节器,600mA 至 800mA,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,600mA 至 800mA,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
LM1117 SPACE SAVING 800-MA LOW-D
立创商城:
LM1117IDT-5.0/NOPB
德州仪器TI:
800-mA 15-V linear voltage regulator
欧时:

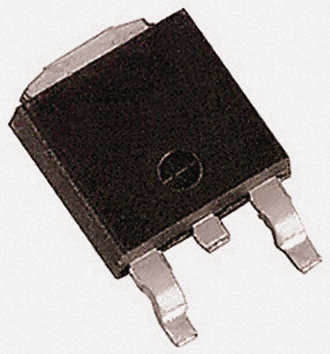

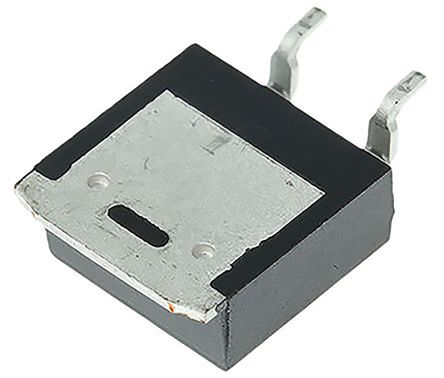

Texas Instruments LM1117IDT-5.0/NOPB LDO 稳压器, 5 V输出, 800mA最大输出, ±1%精确度, 3引脚 TO-252封装
贸泽:
低压差稳压器 800mA LDO Linear Reg
e络盟:
稳压器, 固定LDO, 15V输入, 1.2V压差, 5V/800mA输出, TO-252-3
艾睿:
Stable voltages are always needed for sensitive systems implement this LDO LM1117IDT-5.0/NOPB linear regulator from Texas Instruments. Its typical dropout voltage at current is 1.1@100mA|1.15@500mA|1.2@800mA V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 0.8 A. This will operate at a maximum voltage of 15 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. At a load regulation of 1mVTyp and line regulation of 1mVTyp a constant current can be produced at the output of your circuit. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 1.3@100mA|1.35@500mA|1.4@800mA V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 5V 0.8A 3-Pin2+Tab TO-252 Rail
Chip1Stop:
LDO Regulator Pos 5V 0.8A 3-Pin2+Tab TO-252 Rail
TME:
Voltage regulator; LDO, fixed; 5V; 0.8A; TO252; SMD; Uoper:1.25÷15V
Verical:
LDO Regulator Pos 5V 0.8A 3-Pin2+Tab TO-252 Tube
Newark:
# TEXAS INSTRUMENTS LM1117IDT-5.0/NOPB Fixed LDO Voltage Regulator, 15V in, 1.2V Dropout, 5V/800mA out, TO-252-3
DeviceMart:
IC REG LDO 5V .8A TO-252
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 800mA TO-252-3
工作电压 1.25V ~ 15V
输出接口数 1
输入电压DC 20.0V max
输出电压 5 V
输出电流 800 mA
通道数 1
针脚数 3
静态电流 5 mA
输出电容类型 Tantalum
跌落电压 1.2 V
调节输出数 1
输入电压Max 15 V
输入电压Min 2.6 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±1 %
输入电压 ≤15 V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
长度 6.58 mm
宽度 6.1 mm
高度 2.3 mm
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, 消费电子产品, 便携式器材, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM1117IDT-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
TLV1117-50IKVURG3 德州仪器 | 类似代替 | LM1117IDT-5.0/NOPB和TLV1117-50IKVURG3的区别 |
LM1117IDTX-5.0/NOPB 德州仪器 | 类似代替 | LM1117IDT-5.0/NOPB和LM1117IDTX-5.0/NOPB的区别 |
LM1117IDTX-5.0 德州仪器 | 类似代替 | LM1117IDT-5.0/NOPB和LM1117IDTX-5.0的区别 |
