LM5021 系列,Texas InstrumentsLM5021 离线脉冲宽度调制 PWM 控制器包含使用电流模式控制实施高效离线单端回扫和正向电源转换器的所有功能。### PWM Pulse Width Modulation Controllers, Texas Instruments
回扫控制器、电流控制、LM5021 系列,Texas Instruments
LM5021 离线脉冲宽度调制 PWM 控制器包含使用电流模式控制实施高效离线单端回扫和正向电源转换器的所有功能。
### PWM Pulse Width Modulation Controllers, Texas Instruments
得捷:
IC OFFLINE SWITCH MULT TOP 8DIP
立创商城:
LM5021NA-1/NOPB
德州仪器TI:
30V, 1MHZ current mode PWM controller
欧时:
### 回扫控制器、电流控制、LM5021 系列,Texas InstrumentsLM5021 离线脉冲宽度调制 PWM 控制器包含使用电流模式控制实施高效离线单端回扫和正向电源转换器的所有功能。### PWM Pulse Width Modulation Controllers, Texas Instruments
艾睿:
Never worry about a stable current not being supplied by using this LM5021NA-1/NOPB current controller by Texas Instruments. This current mode controller supports flyback|forward topology. Its single PWM output produces a current of 700 mA. This part offers a switching frequency of 500Typ kHz in order to work properly. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This current mode controller&s;s maximum duty cycle is 80Typ %. This current mode controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
Current Mode PWM Controller 700mA 8-Pin PDIP Rail
Chip1Stop:
Current Mode PWM Controller 700mA 8-Pin PDIP Rail
Verical:
Current Mode PWM Controller 700mA 8-Pin PDIP Tube
DeviceMart:
IC CTLR PWM AC-DC 8-MDIP
电源电压DC 30.0V max
输出接口数 1
输出电流 700 mA
供电电流 2.5 mA
静态电流 2.50 mA
调节输出数 1
上升时间 25 ns
开关频率 500 kHz
拓扑结构 Flyback, Forward
占空比 80 %
最大占空比 50 %
下降时间 10 ns
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 30 V
电源电压Min 8 V
输入电压 8V ~ 30V
安装方式 Through Hole
引脚数 8

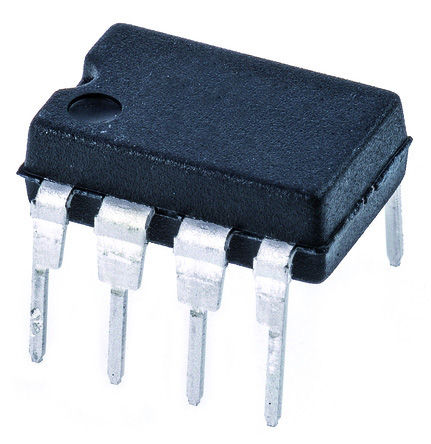

封装 PDIP-8
长度 9.27 mm
宽度 6.35 mm
高度 3.3 mm
封装 PDIP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM5021NA-1/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM5021NA-1 德州仪器 | 功能相似 | LM5021NA-1/NOPB和LM5021NA-1的区别 |
