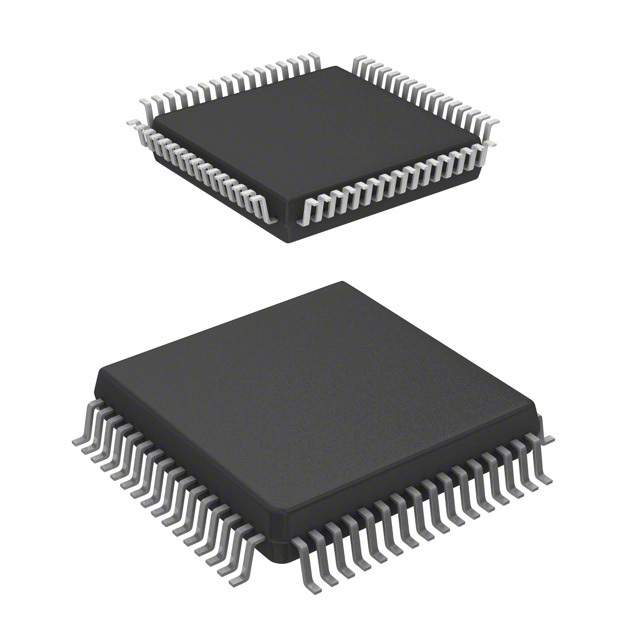

FM Demodulator 3.3V Automotive 64Pin SQFP Tray
The LC72717PW is a data demodulation LSI for receiving FM multiplex broadcasts for mobile reception in the DARC format. This LSI includes an on-chip bandpass filter for extracting the DARC signal from the FM baseband signal. It also supports ITU-R recommended FM multiplex frame structures methods A, A’, B, and C and can implement a compact, multifunction DARC reception system. The LC72717PW’s package, pin assignment and electrical characteristics are same as the LC72715PW VICS-LSI. Functionally, the LC72717PW is a product that VICS function is removed from the LC72715PW. The LC72717PW is also control-compatible with the LC72711LW. Note that a contract with the NHK Engineering System, Inc. may be required to produce DARC compatible products in case, please contact with the NHK Engineering System, Inc.
Features
---
|
- .
- Adjustment-free 76 kHz SCF bandpass filter
- .
- Supports all FM multiplex frame structures under CPU control.
- .
- MSK delay detection system based on a 1T delay.
- .
- Error correction function based on a 2T delay in the MSK detection stage
- .
- Digital PLL based clock regeneration function
- .
- Shift-register 1T and 2T delay circuits
- .
- Block and frame synchronization detection circuits
- .
- Functions for setting the number of allowable BIC errors and the number of synchronization protection operations.
- .
- Error correction using 272, 190 codes
- .
- Built-in layer 4 CRC code checking circuit
- .
- On-chip frame memory and memory control circuit for vertical correction
- .
- 7.2 MHz crystal oscillator circuit
- .
- Two power saving modes : STNBY and EC STOP
- .
- Applications can use either a parallel CPU interface DMA or a CCB serial interface.
- .
- Supply voltage : 2.7 V to 3.6 V
