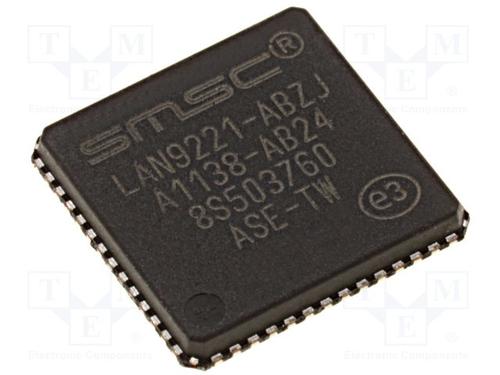

MICROCHIP LAN9221-ABZJ 以太网控制器, 100 Mbps, IEEE 802.3, IEEE 802.3u, 3 V, 3.6 V, QFN, 56 引脚
The is a high-performance 16-bit Non-PCI 10/100 Ethernet Controller with variable voltage I/O. It has been specifically designed to provide high performance and throughput for 16-bit applications. It is fully IEEE 802.3 10Base-T and 802.3u 100Base-TX compliant and supports HP Auto-MDIX. The variable voltage I/O signals of the LAN9221 accommodate lower voltage I/O signalling without the need for voltage level shifters. It includes an integrated Ethernet MAC and PHY with a high-performance SRAM-like slave interface. The simple, yet highly functional host bus interface provides a glue-less connection to most common 16-bit microprocessors and microcontrollers as well as 32-bit microprocessors with a 16-bit external bus. The integrated checksum offload engines enable the automatic generation of the 16-bit checksum for received and transmitted Ethernet frames, offloading the task from the CPU.
电源电压DC 3.00V min
工作电压 0V ~ 3.6V
供电电流 85 mA
针脚数 56
数据速率 100 Mbps
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 3.3 V
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 56

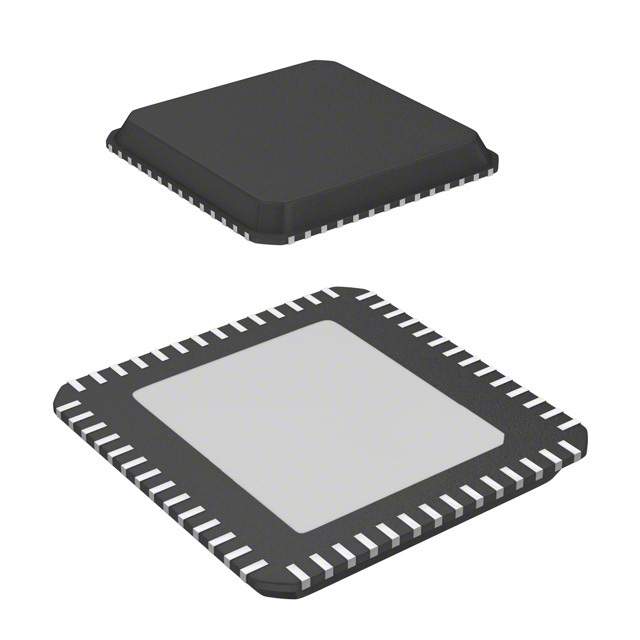

封装 QFN-56
长度 8 mm
宽度 8 mm
高度 0.95 mm
封装 QFN-56
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tray
制造应用 Industrial, 通信与网络, Imaging, Video & Vision, 工业, 成像, 视频和目视, Audio, 自动化与过程控制, Automation & Process Control, 成像, 视频和目视, Consumer Electronics, 消费电子产品, Communications & Networking, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LAN9221-ABZJ Microchip 微芯 | 当前型号 | 当前型号 |
LAN9221I-ABZJ 微芯 | 类似代替 | LAN9221-ABZJ和LAN9221I-ABZJ的区别 |
