LTC6994CDCB-2#TRMPBF

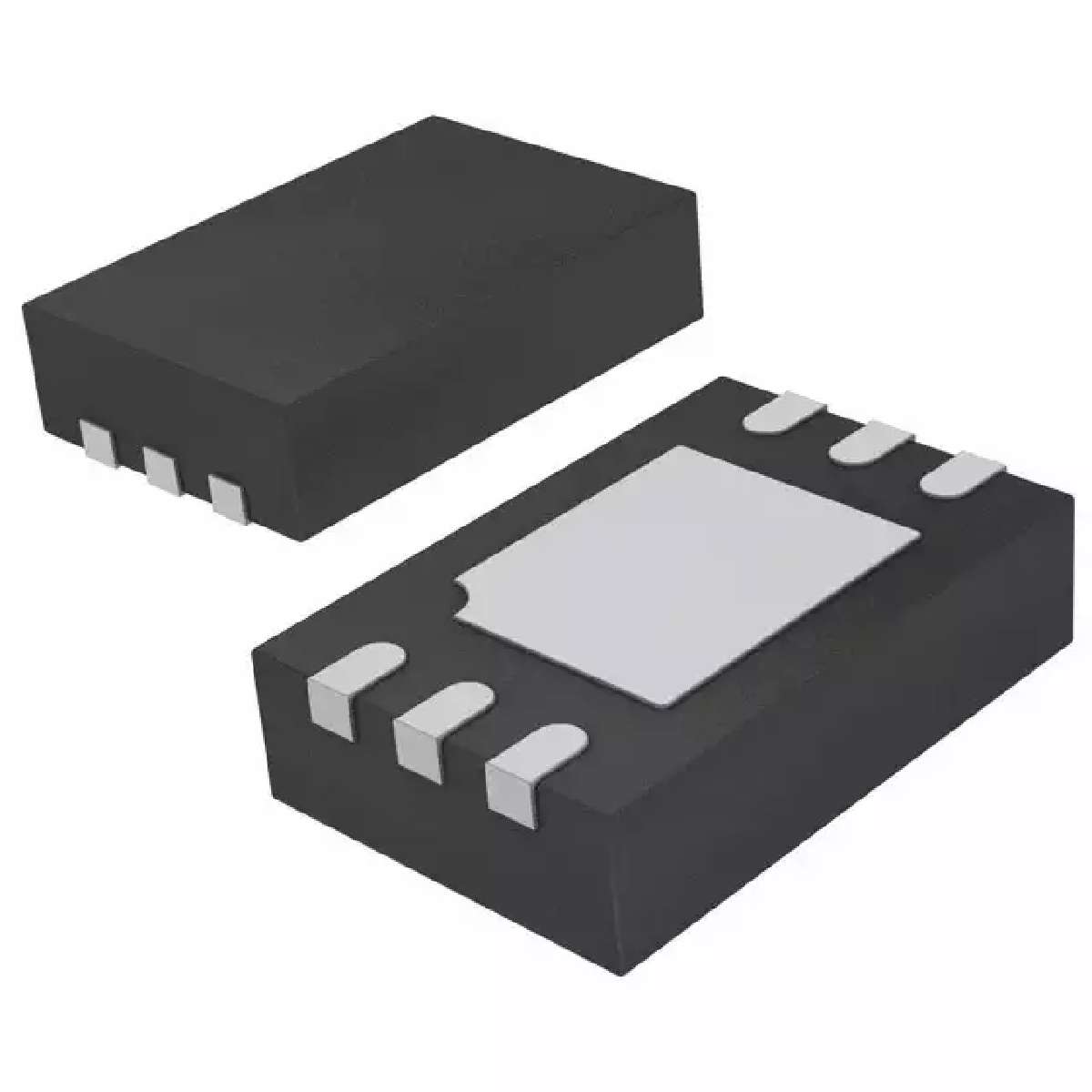

LINEAR TECHNOLOGY  LTC6994CDCB-2#TRMPBF  芯片, 延迟器, TIMERBLOX系列, 6DFN

The is a programmable Delay Block/Debouncer with a range of 1µs to 33.6 seconds. The LTC6994 is part of the TimerBlox® family of versatile silicon timing devices. A single resistor, RSET, programs an internal master oscillator frequency, setting the LTC6994"s time base. The input-to-output delay is determined by this master oscillator and an internal clock divider, NDIV, programmable to eight settings from 1 to 2²¹. The output OUT follows the input IN after delaying the rising and/or falling transitions. The LTC6994-2 will delay both transitions and adds the option to invert the output.

.

Delay one or both rising/falling edges

.

20mA CMOS output driver sources/sinks

.

500µs Start-up time

.

70µA Supply current at 10µs delay

.

Configured with 1 to 3 resistors

.

1µs to 33.6 seconds Delay range
