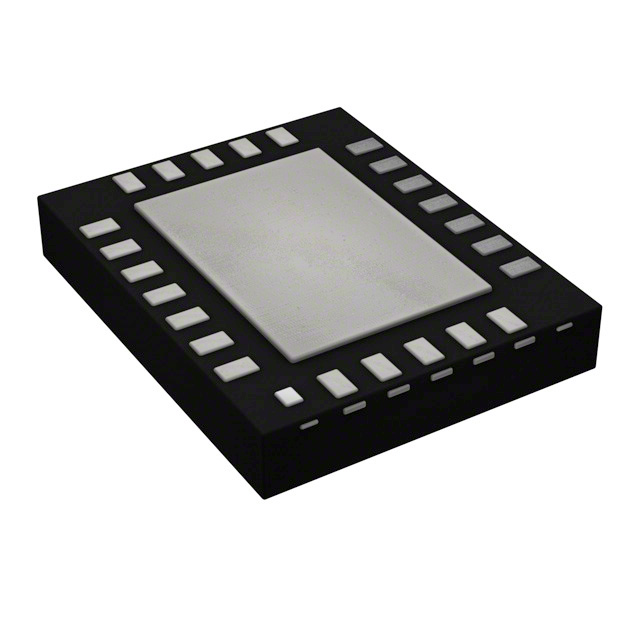

具有斜坡/线性调频脉冲生成功能的 500MHz 至 14GHz 宽带、低噪声分数 N PLL 24-WQFN -40 to 125
The LMX2492/92-Q1 is a low noise 14 GHz wideband delta-sigma fractional N PLL with ramp and chirp generation. It consists of a phase frequency detector, programmable charge pump, and high frequency input for the external VCO. The LMX2492/92-Q1 supports a broad and flexible class of ramping capabilities, including FSK, PSK, and configurable piecewise linear FM modulation profiles of up to 8 segments. It supports fine PLL resolution and fast ramp with up to a 200 MHz phase detector rate. The LMX2492/92-Q1 allows any of its registers to be read back. The LMX2492/92-Q1 can operate with a single 3.3 V supply. Moreover, supporting up to 5.25 V charge pump can eliminate the need of external amplifier, leading to a simpler solution with improved phase noise performance.
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMX2492QRTWTQ1 TI 德州仪器 | 当前型号 | 当前型号 |
LMX2492QRTWRQ1 德州仪器 | 完全替代 | LMX2492QRTWTQ1和LMX2492QRTWRQ1的区别 |
