LMK04100SQE/NOPB

时钟合成器/抖动清除器 Precision Clock Conditioners Clock Jitter Cleaner with Cascaded PLLs 48-WQFN -40 to 85

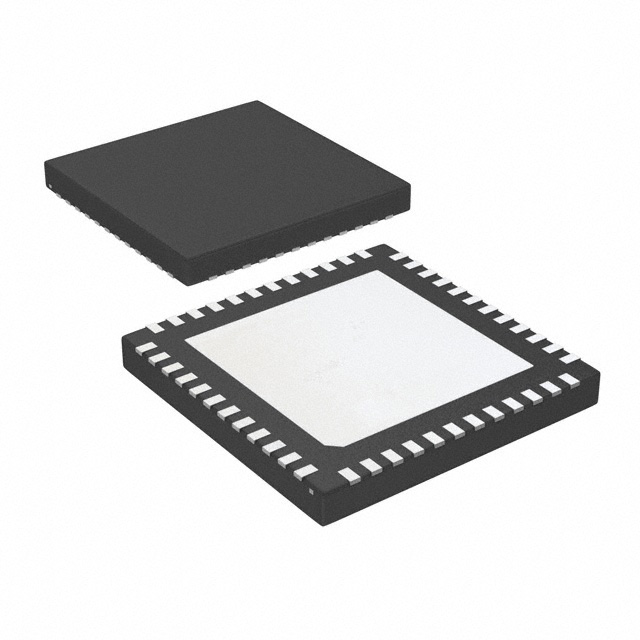

* Cascaded PLLatinum PLL Architecture * PLL1Redundant Reference Inputs Loss of Signal DetectionAutomatic and Manual Selection of Reference Clock Input * PLL2Phase Detector Rate up to 100 MHzInput Frequency-DoublerIntegrated VCO * Outputs * LVPECL/2VPECL, LVDS, and LVCMOS Formats * Support Clock Rates up to 1080 MHz * Five Dedicated Channel Divider Blocks * Common Output Frequencies Supported: 30.72 MHz, 61.44 MHz, 62.5 MHz, 74.25 MHz, 75 MHz, 77.76 MHz, 100 MHz, 106.25 MHz, 125 MHz, 122.88 MHz, 150 MHz, 155.52 MHz, 156.25 MHz, 159.375 MHz, 187.5 MHz, 200 MHz, 212.5 MHz, 245.76 MHz, 250 MHz, 311.04 MHz, 312.5 MHz, 368.64 MHz, 491.52 MHz, 622.08 MHz, 625 MHz, 983.04 MHz * MICROWIRE SPI Programming Interface * Industrial Temperature Range: –40 to 85 °C * 3.15 V to 3.45 V Operation * Package: 48 Pin WQFN 7.0 × 7.0 × 0.8 mm
