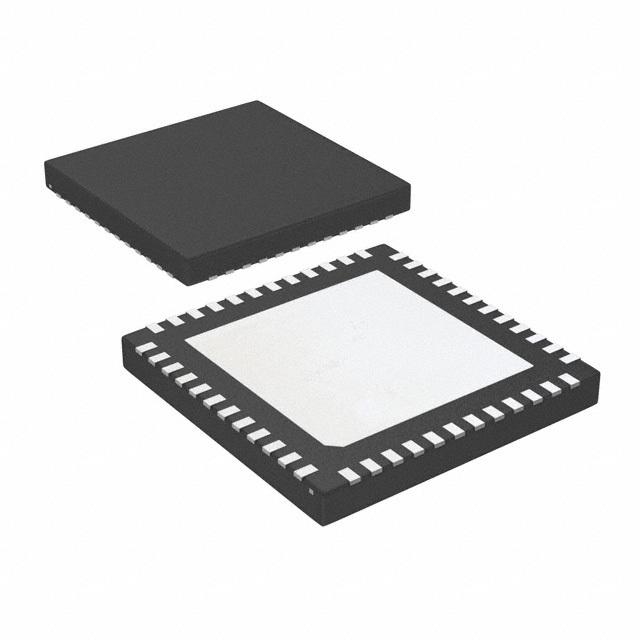

时钟合成器/抖动清除器 Precision Clock Conditioner with Integrated VCO 48-WQFN -40 to 85
The LMK03000 family of precision clock conditioners combine the functions of jitter cleaning/reconditioning, multiplication, and distribution of a reference clock. The devices integrate a Voltage Controlled Oscillator VCO, a high performance Integer-N Phase Locked Loop PLL, a partially integrated loop filter, and up to eight outputs in various LVDS and LVPECL combinations.
The VCO output is optionally accessible on the Fout port. Internally, the VCO output goes through a VCO Divider to feed the various clock distribution blocks.
Each clock distribution block includes a programmable divider, a phase synchronization circuit, a programmable delay, a clock output mux, and an LVDS or LVPECL output buffer. This allows multiple integer-related and phase-adjusted copies of the reference to be distributed to eight system components.
The clock conditioners come in a 48-pin WQFN package and are footprint compatible with other clocking devices in the same family.
频率 200 MHz
电源电压DC 3.30 V
输出接口数 8
供电电流 162 mA
电路数 1
功耗 1.18 W
占空比 50 %
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3.15V ~ 3.45V
电源电压Max 3.45 V
电源电压Min 3.15 V
安装方式 Surface Mount
引脚数 48
封装 WQFN-48
长度 7 mm
宽度 7 mm
高度 0.8 mm
封装 WQFN-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
