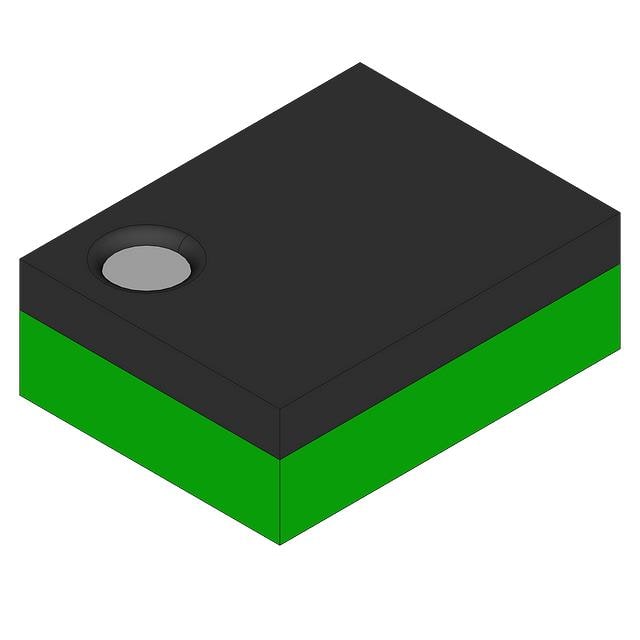

LC898212XC-MH

AF Controller 12Pin WLCSP T/R

This LSI is an Auto Focus AF control LSI. It consists of 1 system of feed back circuit for AF control.

Features

---

 |

.

Built-in equalizer circuit using digital operation :

AF control equalize circuit

Any coefficient can be specified by I2C I/F

.

I2C Interface

.

Built-in A/D converter :

Maximum 10-bit

Input 2 channel

.

Built-in D/A converter :

8-bit Output

2-channel Hall offset, Constant current Bias

.

Built-in OP Amp : 1 channel Hall Amp

.

Built-in OSC : 48MHz Frequency adjustment function

.

Built-in PWM pulse generator circuit : PWM circuit for AF control

.

1-chip motor driver : Saturation drive H bridge 1 channel

.

Supply voltage :

Logic unit = Internal core typ 1.2V, AVDD 2.6V to 3.6V

.

Supply voltage :

Driver unit = VM 2.6V to 3.6V
