具有集成 PLL 的精密时钟分配器 48-WQFN -40 to 85
The LMK02000 precision clock conditioner combines the functions of jitter cleaning/reconditioning, multiplication, and distribution of a reference clock. The device integrates a high performance Integer-N Phase Locked Loop PLL, three LVDS, and five LVPECL clock output distribution blocks.
Each clock distribution block includes a programmable divider, a phase synchronization circuit, a programmable delay, a clock output mux, and an LVDS or LVPECL output buffer. This allows multiple integer-related and phase-adjusted copies of the reference to be distributed to eight system components.

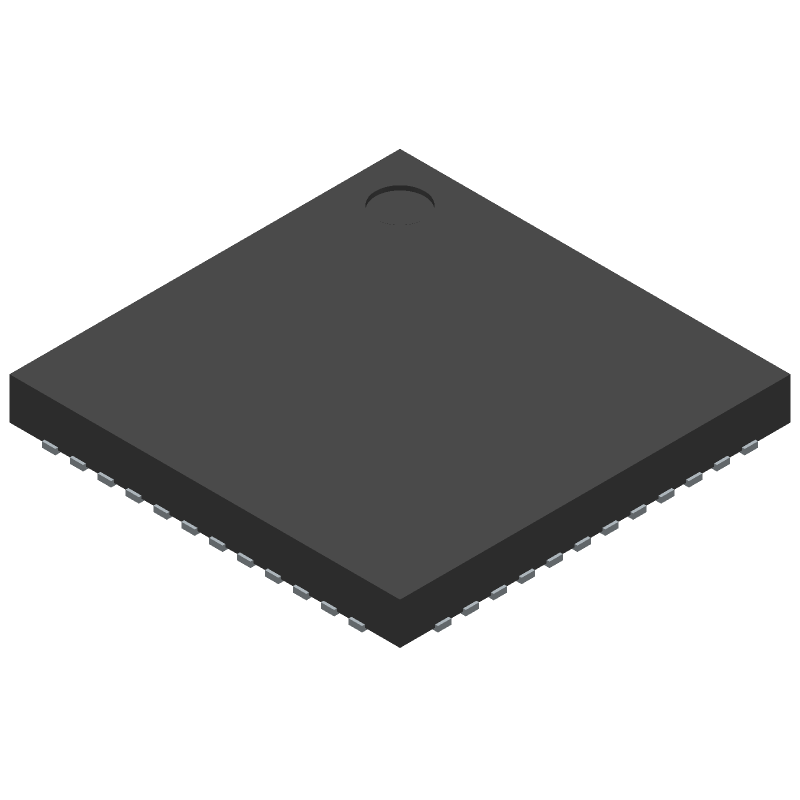

The clock conditioner comes in a 48-pin LLP package and is footprint compatible with other clocking devices in the same family.
频率 800 MHz
电源电压DC 3.30 V
输出接口数 8
供电电流 146 mA
电路数 1
功耗 1.12 W
占空比 50 %
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 3.15V ~ 3.45V
电源电压Max 3.45 V
电源电压Min 3.15 V
安装方式 Surface Mount
引脚数 48
封装 WQFN-48
封装 WQFN-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMK02000ISQ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMK02000ISQX/NOPB 德州仪器 | 完全替代 | LMK02000ISQ/NOPB和LMK02000ISQX/NOPB的区别 |
