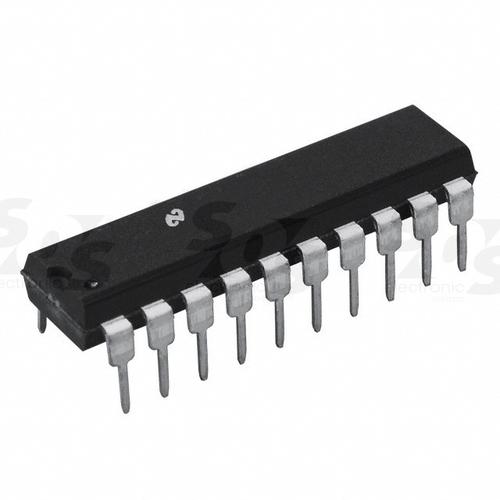

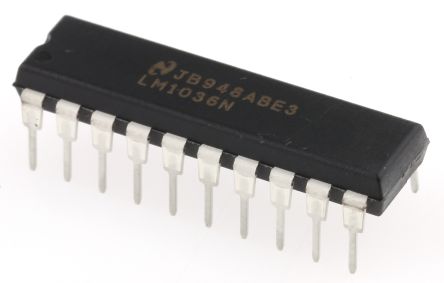

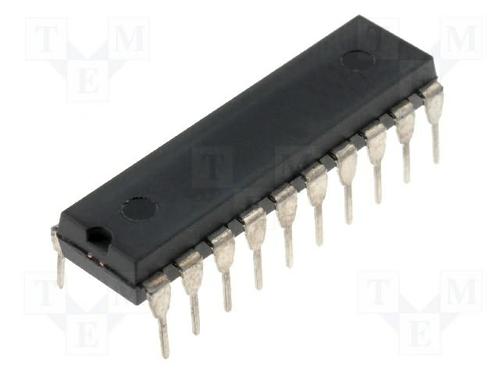

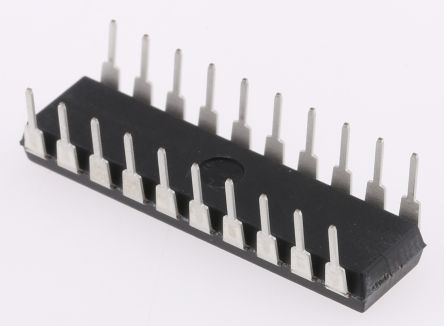

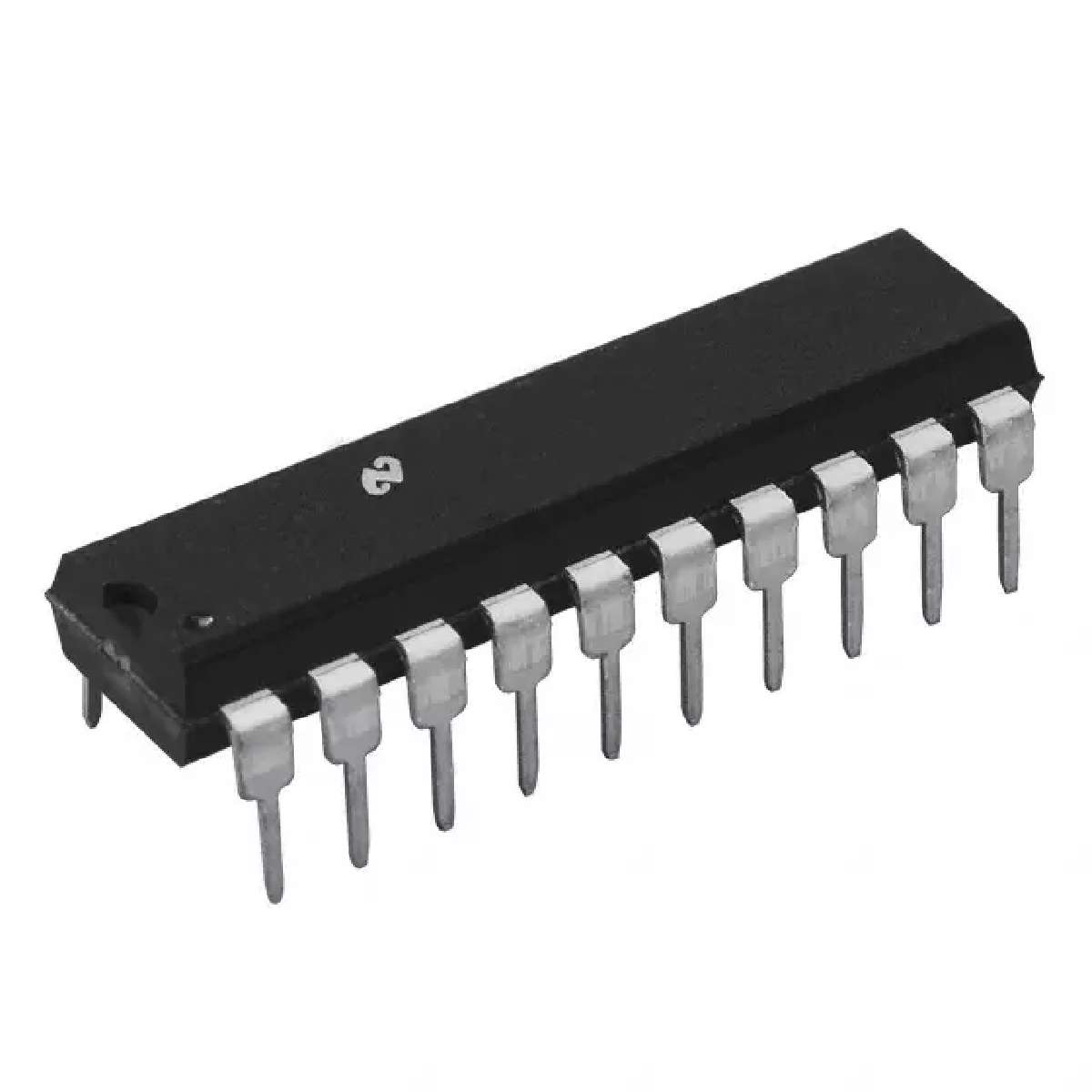

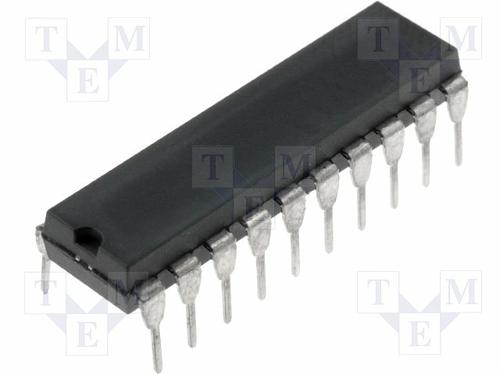

LM1036N/NOPB

TEXAS INSTRUMENTS  LM1036N/NOPB  音频功率放大器, 2通道, 1 W, 9V 至 16V, DIP, 20 引脚

The is a DC controlled tone bass/treble, volume and balance circuit IC for stereo applications. An additional control input allows loudness compensation to be simply effected. Four control inputs provide control of the bass, treble, balance and volume functions through application of DC voltages from a remote control system or, alternatively, from four potentiometers which may be biased from a zener regulated supply provided on the circuit. Each tone response is defined by a single capacitor chosen to give the desired characteristic.

.

75dB Typical Large Volume Control Range

.

±15dB Typical Tone Control

.

75dB Typical Channel Separation

.

0.06% Typical Low Distortion for An Input Level of 0.3Vrms

.

80dB Typical High Signal to Noise for an Input Level of 0.3Vrms

.

Few External Components Required

.

Green Product, No Sb/Br

ESD sensitive device, take proper precaution while handling the device.
