Panel Mounting - LVD Series

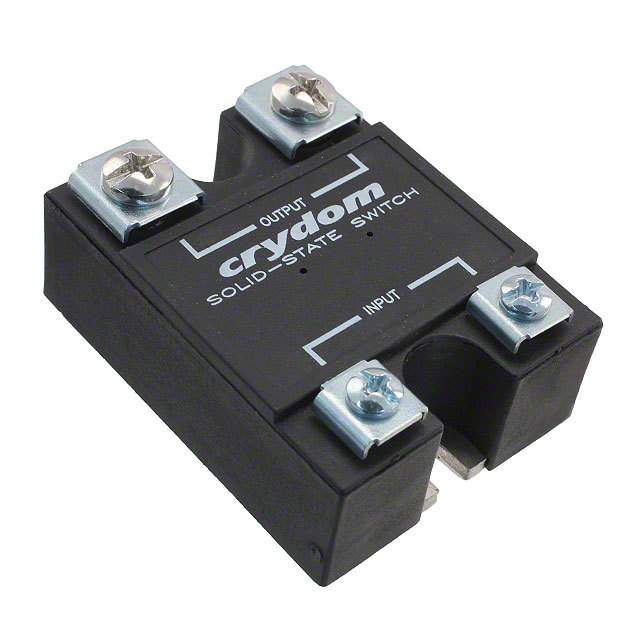

The LVD Series from offers a panel mounting solid state relay within a compact package capable of handling 40A to 100A loads within a 3 → 75 Vdc load voltage band. This particular solid state relay package design hockey puck style is suitable for a large variety of applications employing a screw termination and an operating temperature of -30 → 80 °C.
Low voltage disconnect
Output ratings from 40A → 100A at 3 → 75 Vdc
Low on-state resistance FET output
Six DC control ranges available for 12 and 24 Vdc battery systems
Compact encapsulated panel mount package
Panel mounting
Screw terminals
Operating temperature: -30 → +80 °C
### 认可
RoHS Compliant
### 直流切换
工作电压 75.0V max
输出电流 40000 mA
负载电流 40 A
输入电流 12 mA
隔离电压 2500 v
输出电压Max 75 V
输出电流Max 40 A
负载电流Max 40 A
负载电流Min 5 mA
工作温度Max 80 ℃
工作温度Min -30 ℃
工作电压Min 3 VDC
工作电压Max 75 VDC
输入电压 23VDC ~ 24VDC
安装方式 Surface Mount
引脚数 4
封装 Hockey Puck
长度 45.7 mm
高度 58.4 mm
封装 Hockey Puck
工作温度 -30℃ ~ 80℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
