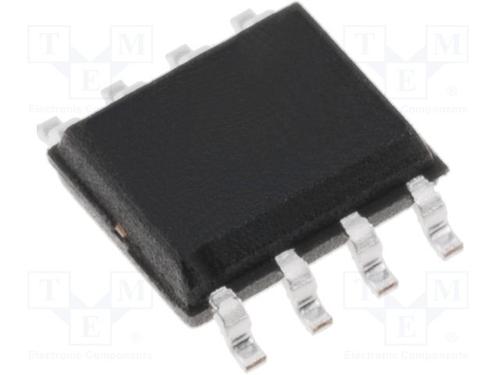

ON SEMICONDUCTOR LM311DG 模拟比较器, 通用, 1, 200 ns, 5V 至 30V, SOIC, 8 引脚
The ability to operate from a single power supply of 5.0 V to 30 V or 15 V split supplies, as commonly used with operational amplifiers, makes the LM211/LM311 a truly versatile comparator. Moreover, the inputs of the device can be isolated from system ground while the output can drive loads referenced either to ground, the VCC or the VEE supply. This flexibility makes it possible to drive DTL, RTL, TTL, or MOS logic. The output can also switch voltages to 50 V at currents to
50 mA, therefore, the LM211/LM311 can be used to drive relays, lamps or solenoids.
电源电压DC 5.00V min
工作电压 5V ~ 15V
供电电流 7.5 mA
电路数 1
通道数 1
针脚数 8
耗散功率 625 mW
输入补偿电压 7.5 mV
输入偏置电流 45 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 625 mW
电源电压 5V ~ 30V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
长度 4.9 mm
封装 SOIC-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM311DG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
LM311DR2G 安森美 | 类似代替 | LM311DG和LM311DR2G的区别 |
LM311D 安森美 | 类似代替 | LM311DG和LM311D的区别 |
LM211DT 意法半导体 | 功能相似 | LM311DG和LM211DT的区别 |
