通用缓冲器, 电平转换器, 200 MHz, 2.375 V至3.45 V, 5输出, WQFN-24
The is an ultra-low jitter LVCMOS Fan-out Buffer and Level Translator with an universal input. It can distribute five ultra-low jitter clocks from a differential, single-ended or crystal input. The LMK00105 supports synchronous output enable for glitch-free operation. The ultra-low-skew, low-jitter and high PSRR make this buffer ideally suited for various networking, server and storage area networking and RRU LO reference distribution applications.
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
频率 200 MHz
电源电压DC 2.38V min
输出接口数 5
电路数 1
针脚数 24
输出电流驱动 24.0 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.375V ~ 3.45V
电源电压Max 3.45 V
电源电压Min 2.375 V
安装方式 Surface Mount
引脚数 24

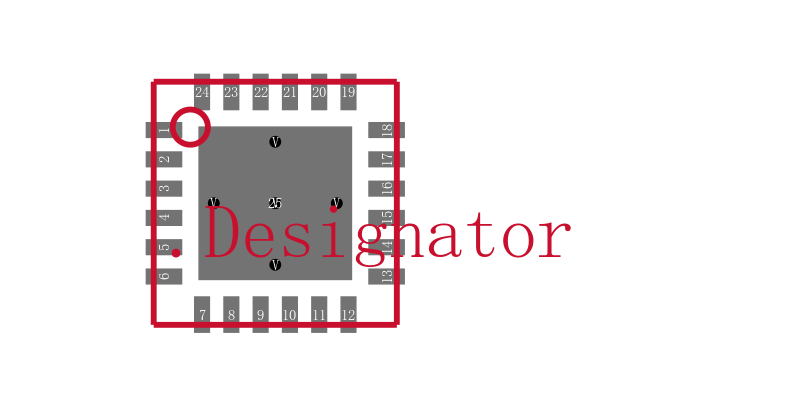

封装 WQFN-24
高度 0.75 mm
封装 WQFN-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 成像, 视频和目视, 测试与测量, 音频, 医用, 便携式器材, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LMK00105SQ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LMK00105SQE/NOPB 德州仪器 | 完全替代 | LMK00105SQ/NOPB和LMK00105SQE/NOPB的区别 |
LMK00105SQX/NOPB 德州仪器 | 完全替代 | LMK00105SQ/NOPB和LMK00105SQX/NOPB的区别 |
