LM4961LQBD

TEXAS INSTRUMENTS  LM4961LQBD  评估板, LM4961, 音频放大器

The LM4961 is an audio power amplifier primarily designed for driving Ceramic Speaker for applications in Cell Phone and PDA"s. It integrates a boost converter, with variable output voltage, with an audio power amplifier.

It is capable of driving 15Vp-p in BTL mode to 2uF+ 30 ohms load, continuous average power, with less than 1% distortion THD+N from a 3.2VDC power supply.

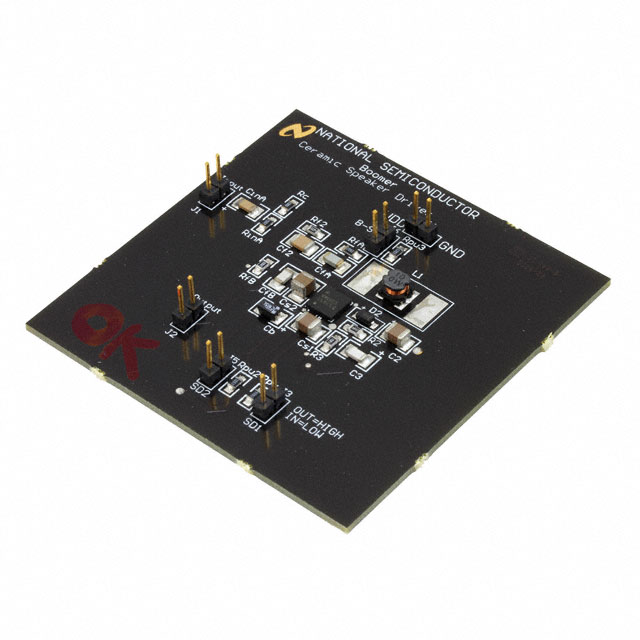

This is an evaluation board designed to ease the evaluation and effort during the development of a circuit using the LM4961LQ. It is an easy to use stand-alone board that requires power and GND, an input signal and an output load.
