LM3475EVAL概述

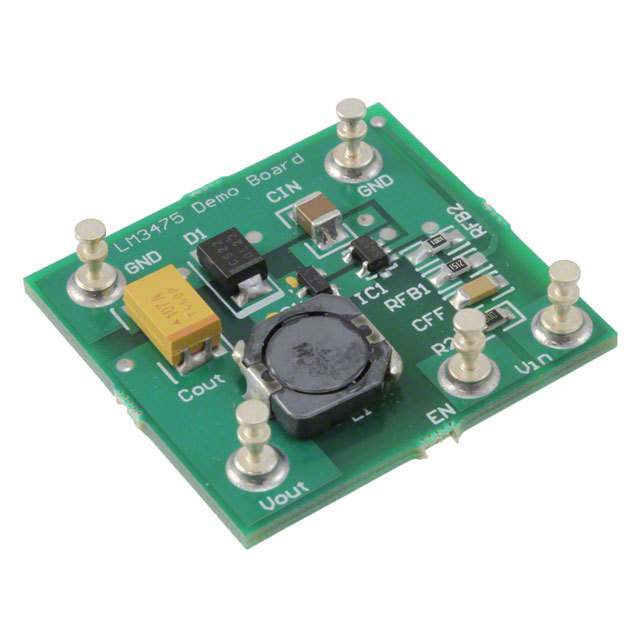

TEXAS INSTRUMENTS LM3475EVAL 评估板, 滞后PFET, 降压控制器
The evaluation board is provided as a tool for developing DC to DC converters based on the LM3475 IC. The LM3475 is a hysteretic PFET buck controller designed to support a wide range of high efficiency applications in a very small SOT23-5 package. The hysteretic control scheme has several advantages, including simple system design with no external compensation, stable operation with a wide range of components and extremely fast transient response. operation, even at light loads. The PFET architecture allows for low component count as well as 100% duty cycle and ultra low dropout operation.
- .
- Easy to use control methodology
- .
- 0.8V to VIN adjustable output range
- .
- High efficiency 90% typical
- .
- 0.9% 1/5% over temp feedback voltage
- .
- 100% duty cycle capable
- .
- Maximum operating frequency up to 2MHz
- .
- Internal soft start
- .
- Enable pin
