LM5006EVAL/NOPB概述

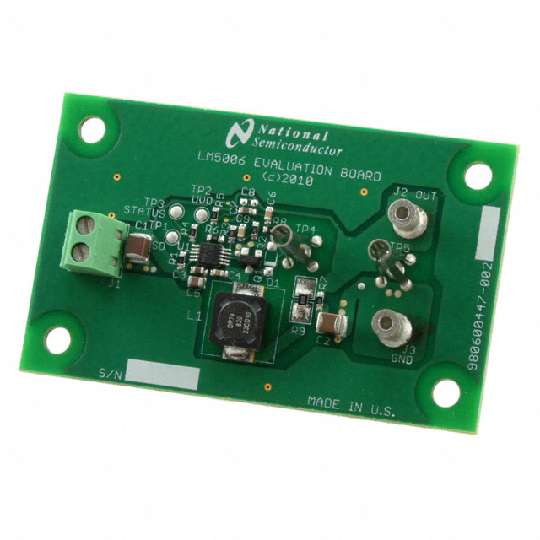

TEXAS INSTRUMENTS LM5006EVAL/NOPB 评估模块, LM5006EVAL/NOPB
The is a LM5006 evaluation board, provides the design engineer with a fully functional buck regulator, employing the constant on time COT operating principle. This evaluation board provides a 5V output over an input range of 6V to 75V. The circuit delivers load currents to 500 mA, with current limit set at a nominal 1A.
- .
- 6V to 75V input voltage range
- .
- Integrated 80V, N-channel buck switch
- .
- Internal start up regulator
- .
- No loop compensation required
- .
- Ultra fast transient response
- .
- Operating frequency remains constant with line and load variations
- .
- Adjustable output voltage from 2.5V
- .
- Precision internal reference, ±2.5%
- .
- Intelligent current limit reduces fold back
- .
- Gate output driver for synchronous rectifier
