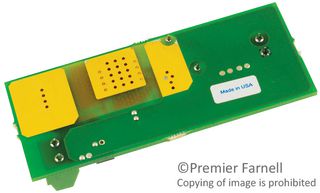

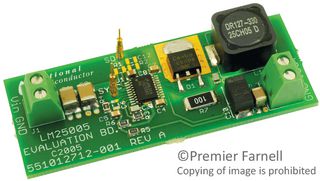

LM25005EVAL

TEXAS INSTRUMENTS  LM25005EVAL.  评估板, LM25005 42V, 2.5A 稳压器

The evaluation board is designed to provide the design engineer with a fully functional power converter based on emulated current mode control to evaluate the LM25005 regulator IC. The evaluation board provides a 5 V output with a 2.5A current capability. The design operates at 300kHz, a good compromise between conversion efficiency and solution size. The printed circuit board consists of two layers of two ounce copper on FR4 material with a thickness of 0.06inches.

.

7V to 42V input voltage range

.

0A to 2.5A output current range

.

Available with 2.75inches × 0.4inches board size

.

300kHz frequency operation

.

Internal bias regulator

.

1.5% feedback reference accuracy

.

Current mode control with emulated inductor current ramp

.

Programmable soft start

.

Wide bandwidth error amplifier

.

Shutdown/standby input
