TEXAS INSTRUMENTS LM20125EVAL. 评估板, LM20125 1.2V, 5A 同步降压稳压器

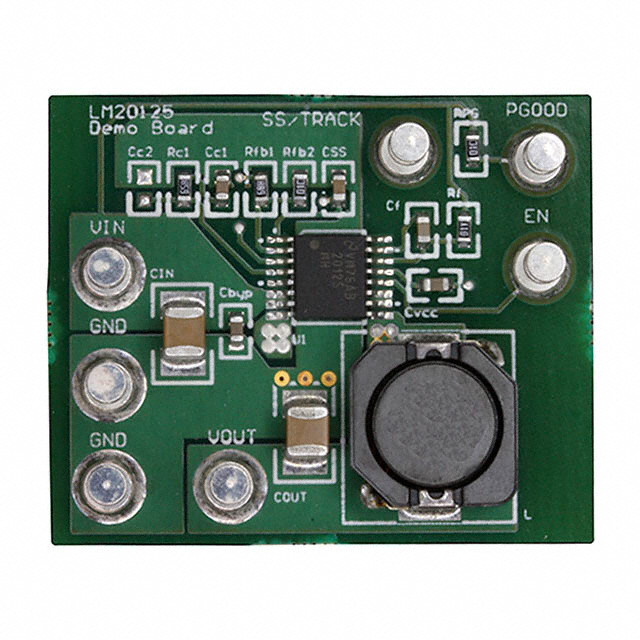

The evaluation board is designed to evaluate the LM20125, a full featured buck switching regulator capable of driving up to 5A of load current. The nominal 500kHz switching frequency of the LM20125 reduces the size of the power stage components while still allowing for highly efficient operation. The LM20125 is capable of converting an input voltage between 2.95V and 5.5V down to an output voltage as low as 0.8V. Fault protection features include cycle by cycle current limit, output power good, and output over voltage protection. The dual function soft start/tracking pin can be used to control the start up response of the LM20125, and the precision enable pin can be used to easily sequence the LM20125 in applications with sequencing requirements. The LM20125 is available in an eTSSOP16 package with an exposed pad for enhanced thermal performance.
- .
- Input voltage range of 2.95V to 5.5V
- .
- Accurate current limit minimizes inductor size
- .
- 96% efficiency with 500kHz switching frequency
- .
- 32mR integrated FET switches
- .
- Starts up in pre biased loads
- .
- Output voltage tracking
- .
- Peak current mode control
- .
- Adjustable output voltage down to 0.8V
- .
- Adjustable soft start with external capacitor
- .
- Precision enable pin with hysteresis
