LMZ31710X2EVM概述
LMZ31710 DC to DC Converter and Switching Regulator Module 0.6VDC/0.9VDC/1.2VDC/1.8VDC Output Evaluation Board

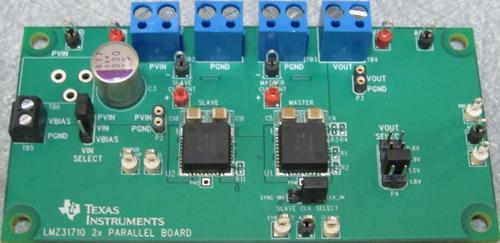

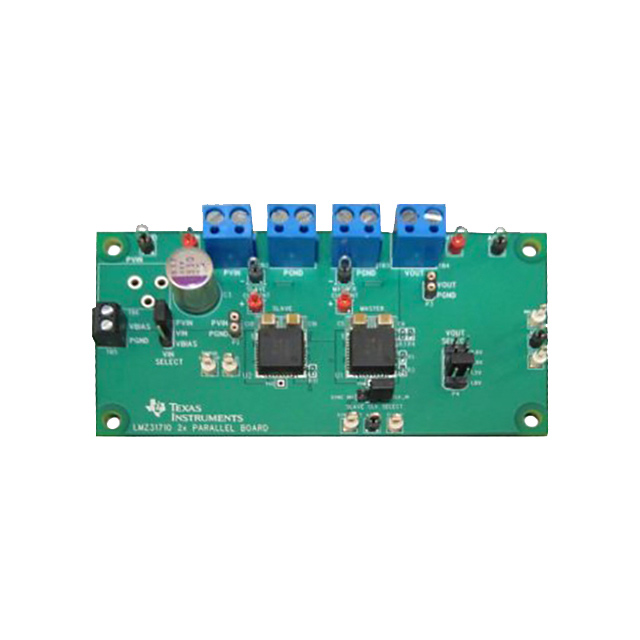

The LMZ31710 parallel evaluation board is configured to parallel 2 LMZ31710 power supplies for increased current up to 18 A. The input voltage is 4.5V to 17V for a single input rail and 2.95V to 17V for split rail inputs. The output voltage can be selected from 4 popular voltages 0.6V, 0.9V, 1.2V, & 1.8V using a single jumper. The evaluation board has several test points and jumpers to easily evaluate the LMZ31710 parallel operation.
得捷:
EVAL MODULE FOR LMZ31710
德州仪器TI:
LMZ31710 Parallel Board
艾睿:
EVALUATION BOARD
