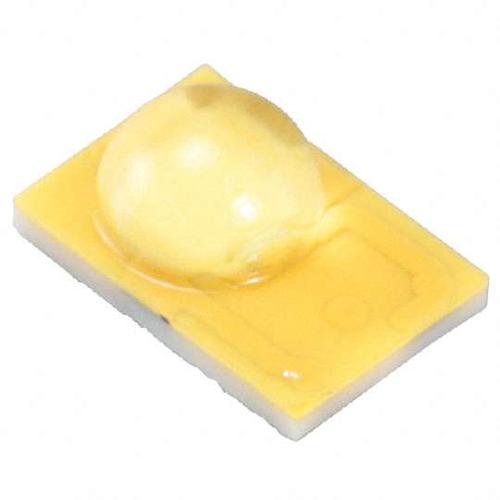

LUMILEDS LX18-P150-3 高亮发光二极管, LUXEON Rebel PLUS系列, 白色, 120 °, 186 lm, 5000 K, 1 A
The LUXEON Rebel PLUS series High Power is designed with the highest possible efficacy and light output from an industry standard 4530 package with a 2.5mm² dome. With hot testing and colour binning, every LUXEON Rebel PLUS is tested and specified at real world operating conditions 85°C. Exceptional colour control enables design simplicity for luminaire manufacturers and ensures that they can be confident in colour consistency from LED to LED. The superior quality of light, light output and real world efficacy enable leading performance and efficient solution development in a wide variety of outdoor and industrial lighting segments.
正向电压 2.76 V
视角 120°
热阻 9 ℃/W
测试电流 350 mA
正向电流 700 mA
正向电压Max 3 V
正向电流Max 1 A
工作温度Max 135 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-3
高度 2.1 mm
封装 SMD-3
颜色 White
产品生命周期 Active
包装方式 Each
制造应用 Industrial, 工业, 发光二极管照明, LED Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
