LXM3-PW51概述

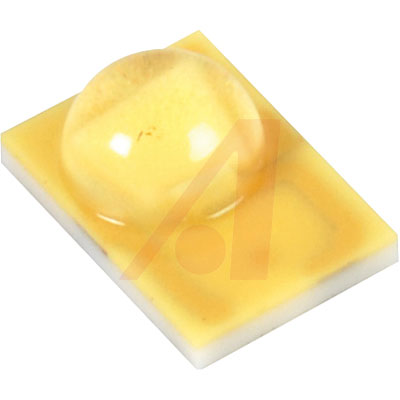

LUMILEDS LXM3-PW51 High Brightness LED, LUXEON Rebel Series, White, 160°, 85 lm, 4260K, 700mA

**Philips LUXEON Rebel Series s**

The LUXEON Rebel series, from Philips Lumileds, are high quality, reliable LEDs. They offer design flexibility with high performance, making it easier to create energy efficient luminaires.

**LUXEON Rebel General purpose white LEDs**

The LUXEON Rebel white LEDs are suitable for a very wide variety of lighting applications. They produce a quality white light output and are a popular choice for lighting and illumination designs. The white LEDs deliver usable light and a higher flux density. Suitable applications include shops, offices, outdoor areas and hotels.

**LUXEON Rebel Colour LEDs**

There is a wide variety of colours available from this family of LEDs. They offer saturated colours from a high quality and reliable LED. The colours include; green, cyan, blue, royal-blue, red, red-orange, PC amber and amber. The LUXEON Rebel coloured LEDs are idea for transforming architecture, stages, dining, entertainment venues and branding.

**Features of the LUXEON Rebel LEDs:**

* Lifetime in excess of 50,000 hours

* Ultra compact surface mount design

* Elevated light output and flux density

* Package size: 4.37x3.17x2mm

LXM3-PW51中文资料参数规格
技术参数

正向电压 3.99 V

视角 160°

测试电流 350 mA

正向电流 700 mA

正向电流Max 700 mA

封装参数

安装方式 Surface Mount

引脚数 3

封装 SMD

外形尺寸

封装 SMD

其他

产品生命周期 Not Recommended for New Design

包装方式 Each

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买LXM3-PW51
型号: LXM3-PW51
制造商: Lumileds
描述:LUMILEDS LXM3-PW51 High Brightness LED, LUXEON Rebel Series, White, 160°, 85 lm, 4260K, 700mA
