LTC6702CTS8#TRMPBF

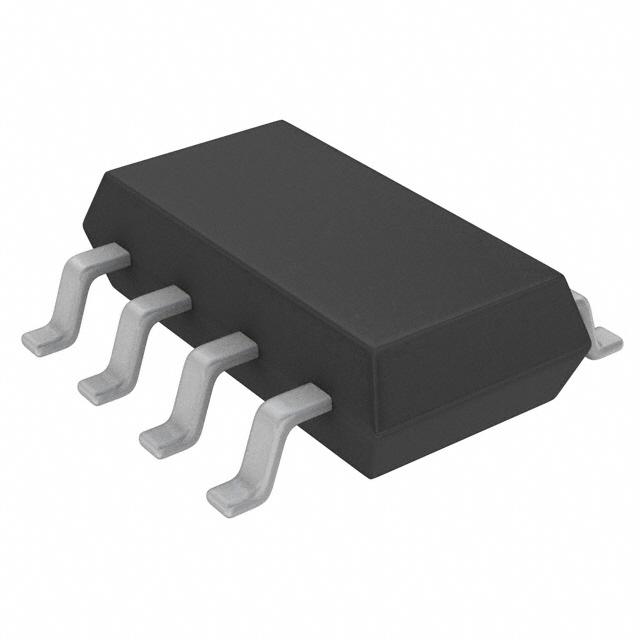

LTC6702CTS8#TRMPBF图片1
LTC6702CTS8#TRMPBF图片2
LTC6702CTS8#TRMPBF图片3
LTC6702CTS8#TRMPBF图片4
LTC6702CTS8#TRMPBF图片5
LTC6702CTS8#TRMPBF图片6
LTC6702CTS8#TRMPBF图片7
LTC6702CTS8#TRMPBF图片8
LTC6702CTS8#TRMPBF概述

LINEAR TECHNOLOGY  LTC6702CTS8#TRMPBF  模拟比较器, 双路, 高速, 2, 320 ns, 1.7V 至 5.5V, SOT-23, 8 引脚

The is a tiny micropower low voltage Dual Comparator designed to maximize battery life while providing both speed and low voltage operation in applications where board space is a premium. This comparator operates on supplies between 1.7 and 5.5V and has a maximum guaranteed propagation delay of 500ns while drawing only 30µA maximum quiescent current. Internal hysteresis desensitizes the LTC6702 to input noise and makes it easy to use, even with slow moving signals. CMOS inputs allow the use of large source impedances. Each comparator has built-in hysteresis to simplify designs, to insure stable operation in the presence of noise at the inputs and to reject supply rail noise. The comparator output is a push-pull CMOS stage guaranteed to swing to within 350mV of V+ and 250mV of ground, over-temperature when sourcing or sinking 15mA. No external pull-up/down resistor is required.

.
Low supply operation 1.7V minimum
.
Low supply current 30µA/comparator maximum
.
500ns Maximum propagation delay 40 to 125°C
.
3.2MHz Toggle frequency
.
Input voltage range extends 100mV below ground
.
4mV Internal hysteresis
.
High output drive TTL and CMOS compatible
LTC6702CTS8#TRMPBF中文资料参数规格
技术参数

供电电流 30.0 µA

电路数 2

针脚数 8

共模抑制比 70 dB

工作温度Max 70 ℃

工作温度Min 0 ℃

电源电压 1.7V ~ 5.5V

电源电压Max 5.5 V

电源电压Min 1.7 V

封装参数

安装方式 Surface Mount

引脚数 8

封装 TSOT-23-8

外形尺寸

高度 0.9 mm

封装 TSOT-23-8

物理参数

工作温度 0℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Cut Tape CT

制造应用 Power Management, Clock & Timing, 电源管理, Automotive, 时钟与计时, 传感与仪器, 车用, Sensing & Instrumentation

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买LTC6702CTS8#TRMPBF
型号: LTC6702CTS8#TRMPBF
制造商: Linear Technology 凌力尔特
描述:LINEAR TECHNOLOGY  LTC6702CTS8#TRMPBF  模拟比较器, 双路, 高速, 2, 320 ns, 1.7V 至 5.5V, SOT-23, 8 引脚
替代型号LTC6702CTS8#TRMPBF
型号/品牌 代替类型 替代型号对比

LTC6702CTS8#TRMPBF

Linear Technology 凌力尔特

当前型号

当前型号

LTC6702CTS8#TRPBF

凌力尔特

完全替代

LTC6702CTS8#TRMPBF和LTC6702CTS8#TRPBF的区别

MAX9020EKA+T

美信

功能相似

LTC6702CTS8#TRMPBF和MAX9020EKA+T的区别
