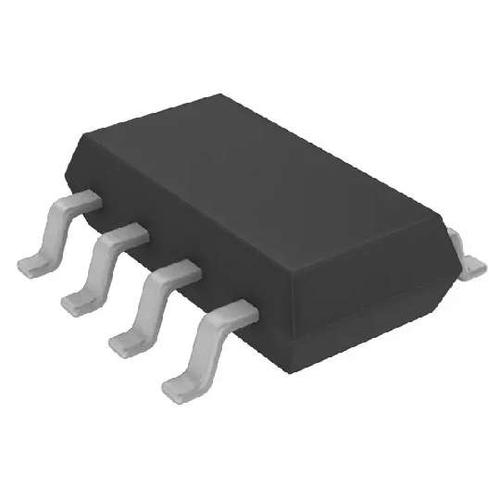

LINEAR TECHNOLOGY LTC6702HTS8#TRMPBF Analogue Comparator, Dual, High Speed, 2, 320ns, 1.7V to 5.5V, SOT-23, 8Pins
This comparator circuit from makes it easy to compare two analog signals and find the better one. It has an open drain output. This comparator has a temperature range of -40 °C to 125 °C. It has 2 channels per chip. This device utilizes CMOS technology. Its typical PSRR is 65 dB. This device uses a single power supply.
供电电流 30.0 µA
电路数 2
共模抑制比 70 dB
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.7 V
安装方式 Surface Mount
引脚数 8
封装 TSOT-23-8
高度 0.9 mm
封装 TSOT-23-8
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC6702HTS8#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC6702HTS8#TRPBF 凌力尔特 | 完全替代 | LTC6702HTS8#TRMPBF和LTC6702HTS8#TRPBF的区别 |
LTC6702CTS8#TRMPBF 凌力尔特 | 类似代替 | LTC6702HTS8#TRMPBF和LTC6702CTS8#TRMPBF的区别 |
LTC6702HTS8#PBF 凌力尔特 | 功能相似 | LTC6702HTS8#TRMPBF和LTC6702HTS8#PBF的区别 |
