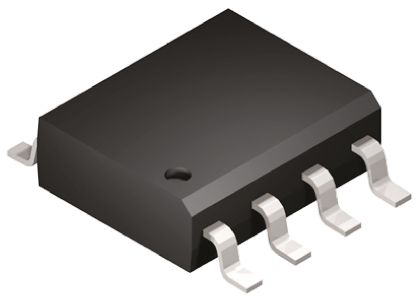

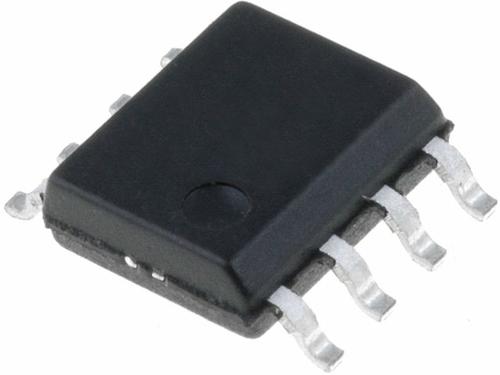

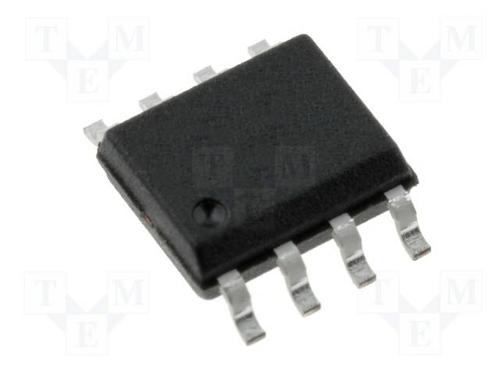

LTC8043ES8#PBF

LINEAR TECHNOLOGY  LTC8043ES8#PBF  数模转换器, 12 bit, 串行, 4.75V 至 5.25V, SOIC, 8 引脚

The is a serial-input 12-bit multiplying Digital-to-analog Converter DAC with superior pin compatible replacement for the DAC-8043. Improvements include better accuracy, better stability over temperature and supply variations, lower sensitivity to output amplifier offset, tighter timing specifications and lower output capacitance. An easy-to-use 3-wire serial interface is well-suited to remote or isolated applications. It can be used for 2-quadrant and 4-quadrant multiplying, programmable gain and single supply applications, such as non-inverting voltage output mode.

.

Extremely versatile

.

Improved direct replacement

.

DNL and INL Over temperature - ±0.5LSB

.

Easy, fast and flexible serial interface

.

4-quadrant multiplication

.

Low power consumption
