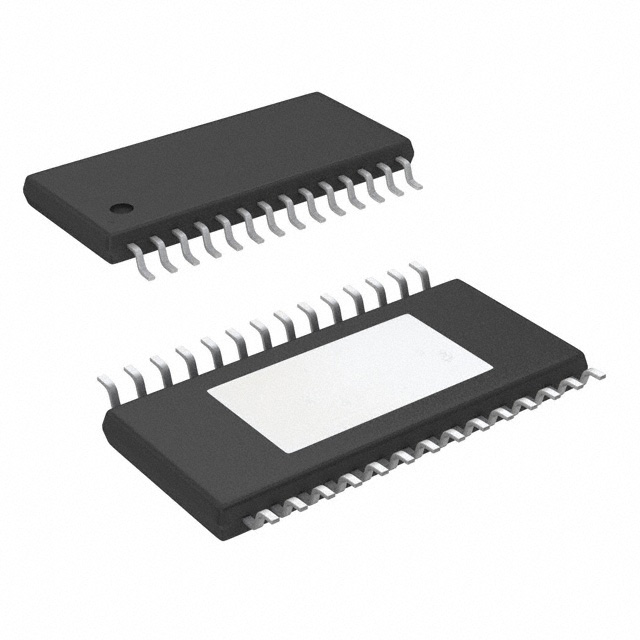

LINEAR TECHNOLOGY LTC3633IFE#PBF 芯片, 降压稳压器, 双路, 15V, 3A, 4MHZ, 28TSSOP
The is a dual-channel monolithic Synchronous Buck Regulator uses a controlled on-time, current mode architecture, with phase lockable switching frequency. The two channels can run 180° out of phase, which relaxes the requirements for input and output capacitance. The operating supply voltage range is from 3.6 to 15V, making it suitable for dual cell lithium-ion batteries as well as point of load power supply applications from a 12 or 5V supply. The operating frequency is programmable and synchronizable from 500kHz to 4MHz with an external resistor. The high frequency capability allows the use of small surface mount inductors and capacitors. The unique constant frequency/controlled on-time architecture is ideal for high step-down ratio applications that operate at high frequency while demanding fast transient response. An internal phase lock loop servos the on-time of the internal one-shot timer to match the frequency of the internal clock or an applied external clock.
输出接口数 2
输出电压 0.6V ~ 14.7V
输出电流 3 A
针脚数 28
开关频率 500kHz ~ 4MHz
输入电压Max 15 V
输入电压Min 3.6 V
输出电压Max 14.7 V
输出电压Min 0.6 V
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3.6 V
输入电压 3.6V ~ 15V
安装方式 Surface Mount
引脚数 28
封装 TSSOP-28
高度 1.05 mm
封装 TSSOP-28
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3633IFE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3633EFE 凌力尔特 | 类似代替 | LTC3633IFE#PBF和LTC3633EFE的区别 |
LTC3633IFE#TRPBF 凌力尔特 | 功能相似 | LTC3633IFE#PBF和LTC3633IFE#TRPBF的区别 |
LTC3633IFE 凌力尔特 | 功能相似 | LTC3633IFE#PBF和LTC3633IFE的区别 |
