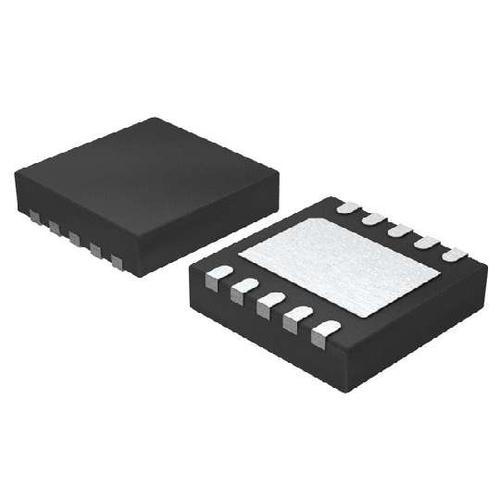

LINEAR TECHNOLOGY LTC3411IDD#PBF 直流-直流开关降压逐步递减稳压器, 可调, 2.63V-5.5V输入, 800mV-5V输出, 1.25A输出, DFN-10
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 1.25Typ A. This will operate at a minimum voltage of 2.63 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 0.8 to 5 V, this is power management at its best. By operating at a load regulation of 0.2% and line regulation of 0.2%/V you can provide a constant voltage at your output. This converter is 95 % efficient. It has a switching frequency of 4000 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 0.8V ~ 5V
输出电流 1.25 A
针脚数 10
开关频率 4 MHz
输入电压Max 5.5 V
输入电压Min 2.63 V
输出电压Max 5 V
输出电压Min 800 mV
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.5.5.5 V
安装方式 Surface Mount
引脚数 10
封装 DFN-10
封装 DFN-10
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3411IDD#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3411EDD#PBF 凌力尔特 | 类似代替 | LTC3411IDD#PBF和LTC3411EDD#PBF的区别 |
LTC3411EDD 凌力尔特 | 类似代替 | LTC3411IDD#PBF和LTC3411EDD的区别 |
LTC3411EDD#TRPBF 凌力尔特 | 类似代替 | LTC3411IDD#PBF和LTC3411EDD#TRPBF的区别 |
