LINEAR TECHNOLOGY LTC3775EUD#PBF 直流/直流控制器, 高频, 4.5V至38V, 1路输出, 同步降压, 1MHz, QFN-16
brings you their latest synchronous step down DC voltage controller, a device that has the ability to properly change the DC voltage across your circuit. With an output that has a voltage of 0.6 to 30.4 V, this is power management at its best. This DC voltage controller has single output. This DC voltage controller has an input voltage of 4.5 to 38 V. This part offers a switching frequency of 1000 kHz in order to work properly. This DC voltage controller has an operating temperature range of -40 °C to 85 °C.
电源电压DC 4.50V min
输出接口数 1
输出电压 0.6V ~ 30.4V
输出电流 25 A
针脚数 16
开关频率 1 MHz
占空比 90 %
输入电压Max 38 V
输入电压Min 4.5 V
最大占空比 0.9
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 38V
电源电压Max 38 V
电源电压Min 4.5 V
输入电压 4.5V ~ 38V
安装方式 Surface Mount
引脚数 16

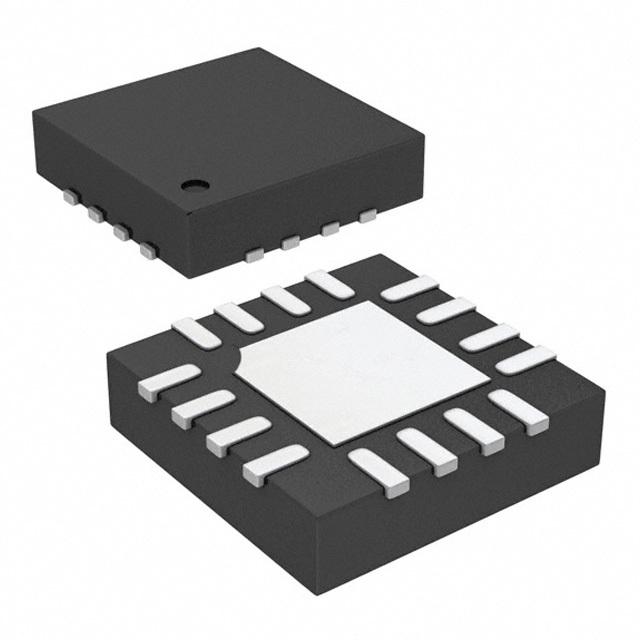

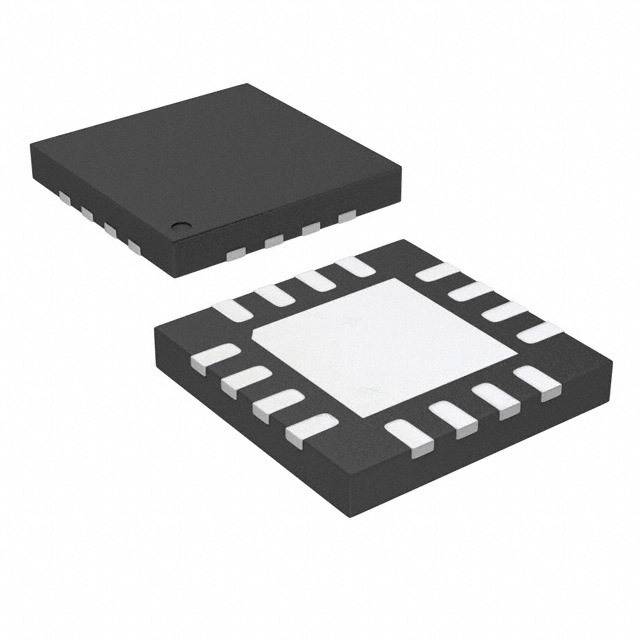

封装 QFN-16
高度 0.75 mm
封装 QFN-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3775EUD#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3775EUD#TRPBF 凌力尔特 | 类似代替 | LTC3775EUD#PBF和LTC3775EUD#TRPBF的区别 |
