LINEAR TECHNOLOGY LTC3427EDC#TRMPBF 直流-直流开关升压逐步递增稳压器, 可调, 1.8V-5V输入, 1.8V-5.25V输出, 0.5A输出, DFN-6
The is a high-efficiency fixed frequency step-up DC-to-DC converter with true output disconnect. Requiring minimal external components, the LTC3427 operates from an input voltage as low as 1.8V. The LTC3427 contains an internal 0.525R N-channel MOSFET switch and a 0.575R P-channel MOSFET synchronous rectifier, which enables it to supply 200mA at 3.3V from a 2-cell alkaline battery input. The LTC3427 limits inrush current during start-up and provides a soft-start of VOUT. A switching frequency of 1.25MHz minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors and produces very low VOUT ripple. The current-mode PWM design is internally compensated, reducing external parts count. Anti-ringing control reduces EMI in discontinuous mode operation. The LTC3427 also features low shutdown current of under 1µA and thermal shutdown.
频率 1.25 MHz
输出接口数 1
输出电压 1.8V ~ 5.25V
输出电流 500 mA
针脚数 6
开关频率 1.25 MHz
输入电压Max 5 V
输入电压Min 1.8 V
输出电压Max 5.25 V
输出电压Min 1.8 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5V
输入电压 1.8V ~ 5V
安装方式 Surface Mount
引脚数 6

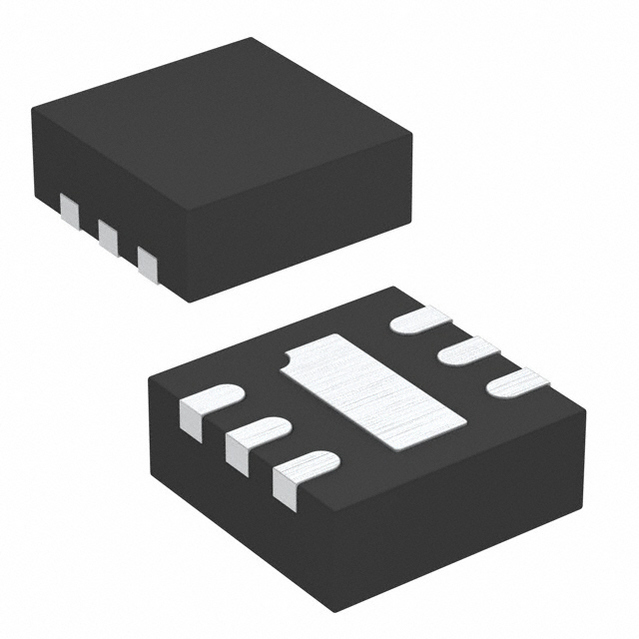

封装 DFN-6
封装 DFN-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Wireless, Consumer Electronics, Sensing & Instrumentation, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3427EDC#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3427EDC#TRPBF 凌力尔特 | 功能相似 | LTC3427EDC#TRMPBF和LTC3427EDC#TRPBF的区别 |
LTC3427EDC 凌力尔特 | 功能相似 | LTC3427EDC#TRMPBF和LTC3427EDC的区别 |
