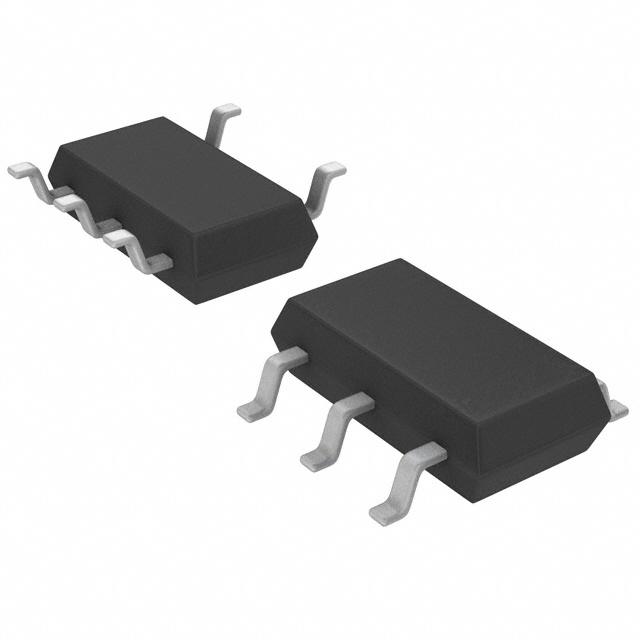

LINEAR TECHNOLOGY LTC3406ES5-1.5#TRMPBF 同步降压开关稳压器, 固定, 2.5V-5.5V输入, 1.5V和0.6A输出, TSOT-23-5
The is a high efficiency monolithic synchronous Buck Regulator uses a constant frequency, current mode architecture. The device is available in an adjustable version and fixed output voltages of 1.5 and 1.8V. Supply current during operation is only 20µA and drops to
- .
- Up to 96% high efficiency
- .
- No Schottky diode required
- .
- 100% Duty cycle low dropout operation
- .
- Shutdown mode draws
- .
- Current mode operation for excellent line and load transient response
- .
- Overtemperature protected
频率 1.50 MHz
输出接口数 1
输出电压 1.5 V
输出电流 600 mA
针脚数 5
开关频率 1.5 MHz
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Min 1.5 V
输出电流Max 0.6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5 V
输入电压 2.5.5.5 V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
高度 0.9 mm
封装 TSOT-23-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 电源管理, 无线, Portable Devices, Wireless, 通信与网络, 便携式器材, 音频, Power Management, Communications & Networking, Audio
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2018/01/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3406ES5-1.5#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3406ES5-1.5#TRPBF 凌力尔特 | 完全替代 | LTC3406ES5-1.5#TRMPBF和LTC3406ES5-1.5#TRPBF的区别 |
LTC3406ES5-1.5 凌力尔特 | 类似代替 | LTC3406ES5-1.5#TRMPBF和LTC3406ES5-1.5的区别 |
