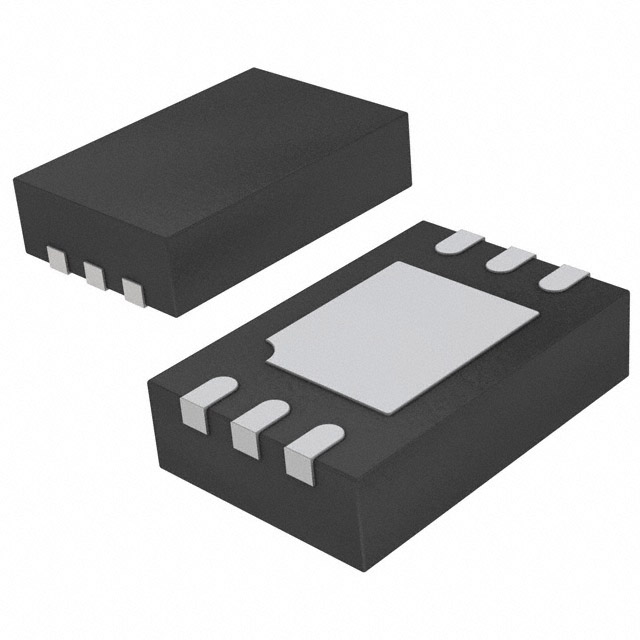

LINEAR TECHNOLOGY LTC3526BEDC#TRMPBF 直流-直流开关升压逐步递增稳压器, 可调, 800mV-5V输入, 1.6V-5.25V输出, 0.5A输出, DFN-6
The is a synchronous fixed frequency step-up DC-to-DC Converter with output disconnect. Battery life in single AA/AAA powered products is extended further with an 850mV start-up voltage and operation down to 500mV once started. A switching frequency of 1MHz minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. The current-mode PWM design is internally compensated, reducing external parts count. The LTC3526B features continuous switching at light loads. Anti-ringing control circuitry also reduces EMI concerns by damping the inductor in discontinuous mode. Additional features include a low shutdown current of under 1µA and thermal shutdown.
频率 1 MHz
输出接口数 1
输出电压 1.6V ~ 5.25V
输出电流 500 mA
针脚数 6
开关频率 1.3 MHz
输入电压Max 5 V
输入电压Min 800 mV
输出电压Max 5.25 V
输出电压Min 1.6 V
输出电流Max 0.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 6 V
输入电压 0.5 V
安装方式 Surface Mount
引脚数 6
封装 DFN-6
高度 0.75 mm
封装 DFN-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Wireless, Consumer Electronics, Medical
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3526BEDC#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3526BEDC#TRPBF 凌力尔特 | 功能相似 | LTC3526BEDC#TRMPBF和LTC3526BEDC#TRPBF的区别 |
LTC3526BEDC#TRM 凌力尔特 | 功能相似 | LTC3526BEDC#TRMPBF和LTC3526BEDC#TRM的区别 |
