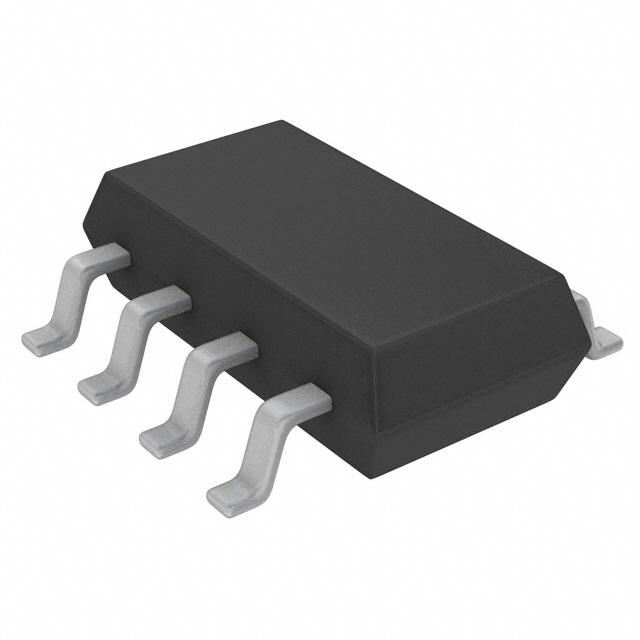

LINEAR TECHNOLOGY LTC2315ITS8-12#TRMPBF 模数转换器, 12 bit, 5 MSPS, 双 +/-, 2.7 V, 5.25 V, TSOT-23
The is a 12-bit serial sampling Analog-to-digital Converter ADC that draws only 6.4mA from a wide range analog supply adjustable from 2.7 to 5.25V. The ADC contains an integrated band gap and reference buffer which provides high performance and space saving applications solution. The ADC achieves outstanding AC performance of 72.6dB SINAD and -84dB THD while sampling a 500kHz input frequency. The extremely high sample rate-to-power ratio makes the ADC ideal for compact, low power, high speed systems. The ADC also provides both nap and sleep modes for further optimization of the device power within a system. It has a high-speed SPI-compatible serial interface that supports 1.8/2.5/3/5V logic. The fast 5Msps throughput makes the ADC ideally suited for a wide variety of high speed applications.
电源电压DC 2.70V min
供电电流 6.40 mA
电路数 1
针脚数 8
位数 12
耗散功率 32 mW
采样率 5 Msps
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 37.5 mW
输入通道数 1
电源电压Max 5.25 V
电源电压Min 2.7 V
输入电压 4.096 V
引脚数 8
封装 TSOT-23-8
封装 TSOT-23-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, 电源管理, 便携式器材, Automotive, Medical, 成像, 视频和目视, Portable Devices, 通信与网络, Automation & Process Control, 自动化与过程控制, Communications & Networking, 车用, 医用, Imaging, Video & Vision
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2315ITS8-12#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2315ITS8-12#TRPBF 凌力尔特 | 完全替代 | LTC2315ITS8-12#TRMPBF和LTC2315ITS8-12#TRPBF的区别 |
LTC2312CTS8-12#TRMPBF 凌力尔特 | 类似代替 | LTC2315ITS8-12#TRMPBF和LTC2312CTS8-12#TRMPBF的区别 |
LTC2312ITS8-12#TRMPBF 凌力尔特 | 类似代替 | LTC2315ITS8-12#TRMPBF和LTC2312ITS8-12#TRMPBF的区别 |
