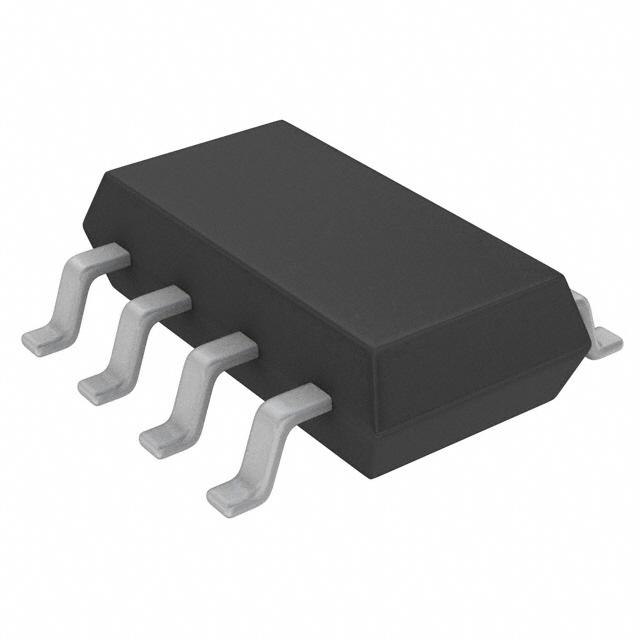

LINEAR TECHNOLOGY LTC2631CTS8-HZ10#TRMPBF 数模转换器, 10 bit, 串行, 4.5V 至 5.5V, TSOT-23, 8 引脚
The is a 10-bit voltage-output Digital-to-analog Converter DAC with an integrated, high accuracy, low-drift reference. It has a rail-to-rail output buffer that is guaranteed monotonic. The LTC2631-H has a full-scale output of 4.096V and operates from a 4.5 to 5.5V supply. A 10ppm/°C reference output is available at the REF pin. The DAC can also operate in external reference mode, in which a voltage supplied to the REF pin sets the full-scale output. The LTC2631 DAC uses a 2-wire, I²C-compatible serial interface. The LTC2631 operates in both the standard mode and the fast mode. The LTC2631 incorporates a power-on reset circuit.
供电电流 200 µA
针脚数 8
位数 10
工作温度Max 70 ℃
工作温度Min 0 ℃
数模转换数DAC 1
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 8

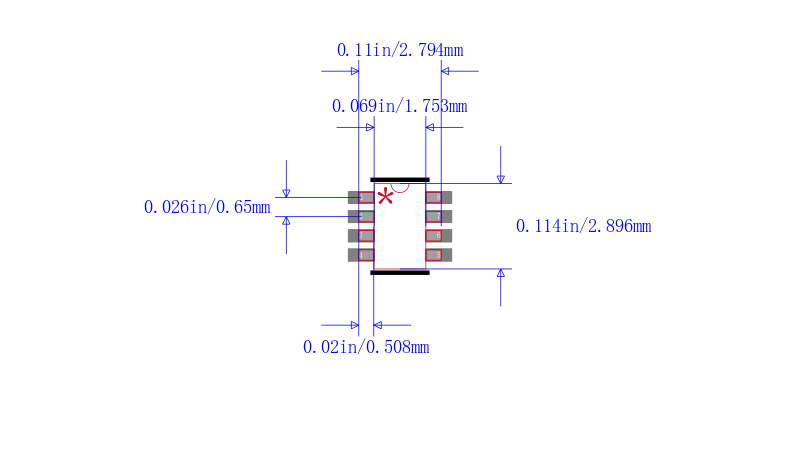

封装 TSOT-23-8
封装 TSOT-23-8
工作温度 0℃ ~ 70℃
产品生命周期 Discontinued at Digi-Key
包装方式 Cut Tape CT
制造应用 Test & Measurement, Consumer Electronics, 便携式器材, Automotive, Portable Devices, 通信与网络, Automation & Process Control, 自动化与过程控制, Communications & Networking, 车用, 消费电子产品, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2631CTS8-HZ10#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2631CTS8-HZ10#TRPBF 凌力尔特 | 完全替代 | LTC2631CTS8-HZ10#TRMPBF和LTC2631CTS8-HZ10#TRPBF的区别 |
