LINEAR TECHNOLOGY LTC2366ITS8#TRMPBF 模数转换器, SAR, 12 bit, 3 MSPS, 单, 2.35 V, 3.6 V, TSOT-23
The is a 12-bit serial sampling Analog-to-digital Converter ADC that draws only 2.6mA from a single 3V supply. This high performance device includes a high dynamic range sample-and-hold and a high speed serial interface. The full-scale input is 0V to VDD or VREF. Outstanding AC performance includes 72dB SINAD and -80dB THD at sample rates of 3Msps. The serial interface provides flexible power management and allows maximum power efficiency at low throughput rates. The serial interface and extremely high sample rate-to-power ratio make the ADC ideal for compact, low power and high speed systems. The high impedance single-ended analog input and the ability to operate with reduced spans allow direct connection to sensors and transducers in many applications eliminating the need for gain stages.
供电电流 2.6 mA
通道数 1
针脚数 8
位数 12
采样率 3 Msps
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.35V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.35 V
安装方式 Surface Mount
引脚数 8

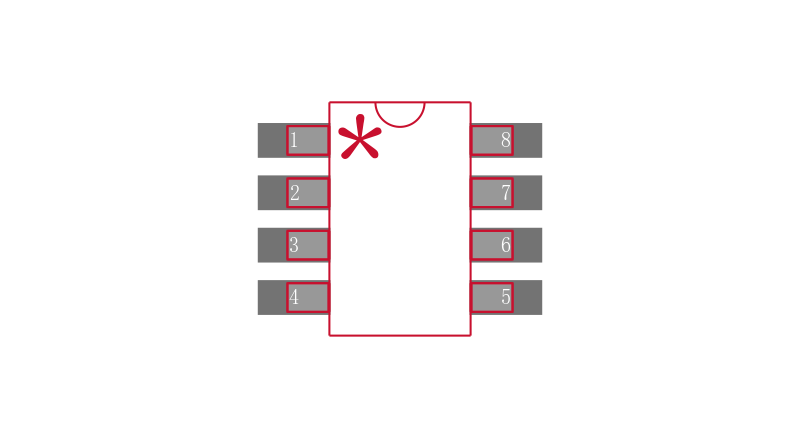

封装 TSOT-23-8
封装 TSOT-23-8
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 视频和目视, Medical, 通信与网络, Automation & Process Control, Communications & Networking, 车用, 医用, Imaging, Video & Vision, Power Management, 电源管理, 便携式器材, Automotive, 成像, 视频和目视, Portable Devices, 自动化与过程控制, 成像
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2366ITS8#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2366CTS8#TRMPBF 凌力尔特 | 类似代替 | LTC2366ITS8#TRMPBF和LTC2366CTS8#TRMPBF的区别 |
LTC2366ITS8#PBF 凌力尔特 | 功能相似 | LTC2366ITS8#TRMPBF和LTC2366ITS8#PBF的区别 |
LTC2366HTS8#PBF 凌力尔特 | 功能相似 | LTC2366ITS8#TRMPBF和LTC2366HTS8#PBF的区别 |
