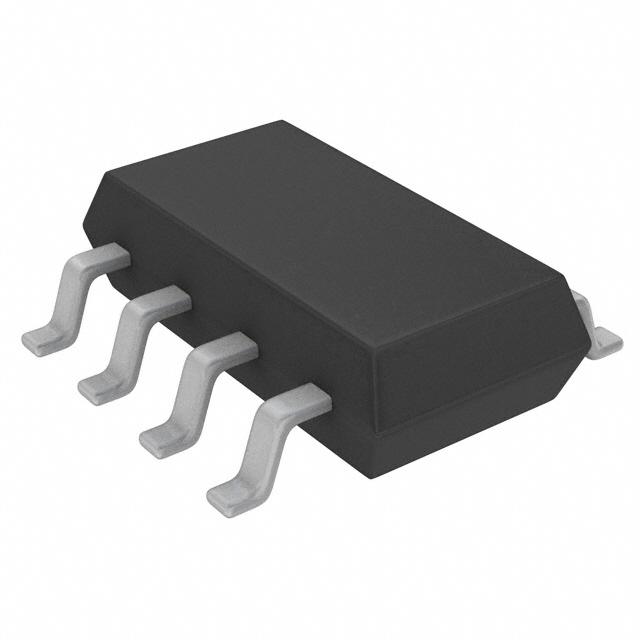

LTC2361ITS8#TRMPBF

LINEAR TECHNOLOGY  LTC2361ITS8#TRMPBF  模数转换器, SAR, 12 bit, 250 kSPS, 单, 2.35 V, 3.6 V, TSOT-23

The is a 12-bit serial sampling Analog-to-digital Converter ADC that draws only 0.5mA from a single 3V supply. The supply current drops at lower sampling rates because this device automatically power down after conversions. The full-scale input of the ADC is 0V to VDD or VREF. The serial interface and extremely high sample rate-to-power ratio make the ADC ideal for compact, low power, high speed systems. The high impedance single-ended analog input and the ability to operate with reduced spans allow direct connection to sensors and transducers in many applications eliminating the need for gain stages.

.

No data latency

.

Sleep mode with 0.1µA typical supply current

.

Dedicated external reference

.

SPI/MICROWIRE compatible serial I/O
