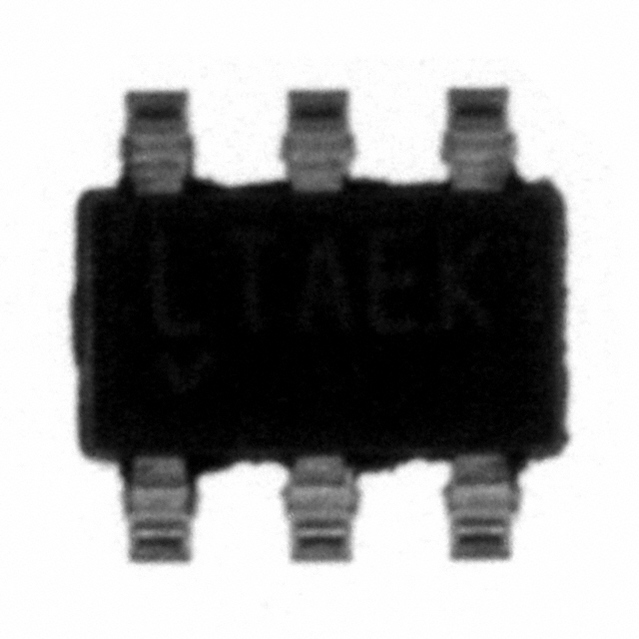

LTC2050HVCS6#TRMPBF

LINEAR TECHNOLOGY  LTC2050HVCS6#TRMPBF  运算放大器, 单路, 3 MHz, 1个放大器, 2 V/µs, 2.7V 至 ± 5.5V, SOT-23, 6 引脚

The is a zero-drift Operational Amplifier operates from a single 2.7 to 6V supply. The LTC2050HV operates on supplies from 2.7 to ±5.5V. The LTC2050, despite its miniature size, features uncompromising DC performance. The typical input offset voltage and offset drift are 0.5µV and 10nV/°C. The almost zero DC offset and drift are supported with a power supply rejection ratio PSRR and common mode rejection ratio CMRR of more than 130dB. The input common mode voltage ranges from the negative supply up to typically 1V from the positive supply. The LTC2050 also has an enhanced output stage capable of driving loads as low as 2kR to both supply rails. The open-loop gain is typically 140dB. The LTC2050 also features a 1.5µVP-P DC to 10Hz noise and a 3MHz gain bandwidth product.

.

140dB typical Voltage gain

.

130dB typical PSRR

.

130dB typical CMRR

.

0.8mA typical Supply current

.

Extended common mode input range

.

Output swings rail-to-rail

.

2ms typical Input overload recovery time
