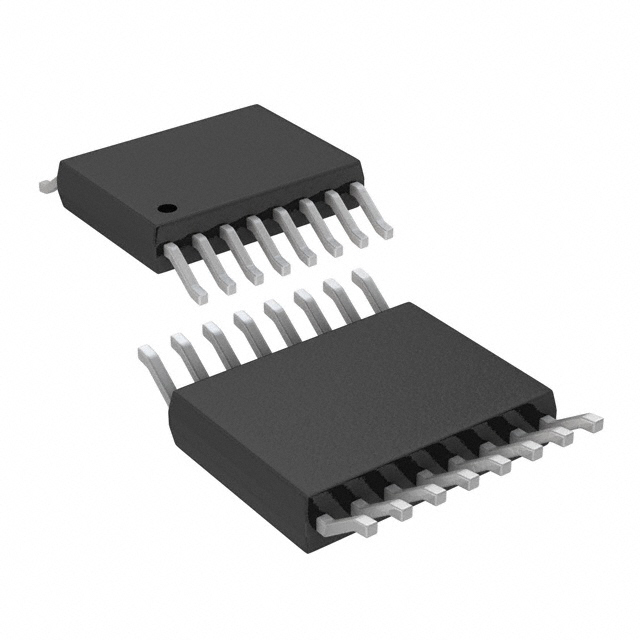

LTC2378CMS-20#PBF

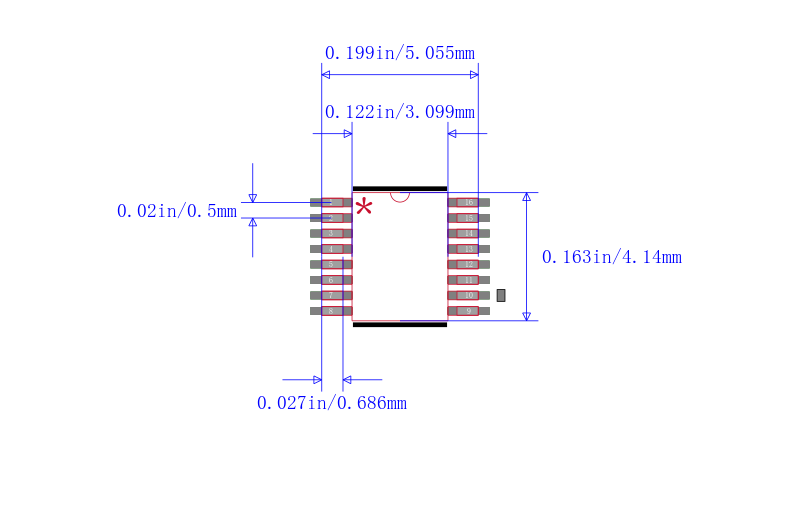

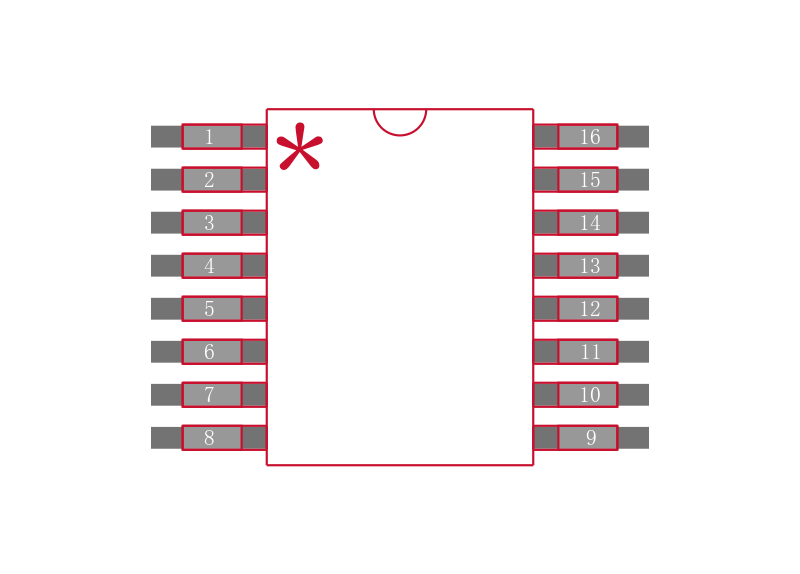

LINEAR TECHNOLOGY  LTC2378CMS-20#PBF  模数转换器, 20 bit, 1 MSPS, 单, 2.375 V, 2.625 V, MSOP

The is a low noise, low power high speed successive approximation registers Analog-to-digital Converter ADC. Operating from a 2.5V supply, the ADC has a ±VREF fully differential input range with VREF ranging from 2.5 to 5.1V. The ADC consumes only 21mW and achieves ±2ppm INL maximum, no missing codes at 20-bit with 104dB SNR. It has a high speed SPI-compatible serial interface that supports 1.8/2.5/3.3/5V logic while also featuring a daisy-chain mode. The fast 1Msps throughput with no cycle latency makes the ADC ideally suited for a wide variety of high speed applications. An internal oscillator sets the conversion time, easing external timing considerations. The ADC automatically powers down between conversions, leading to reduced power dissipation that scales with the sampling rate. The ADC features unique digital gain compression function, which eliminates the driver amplifiers negative supply while preserving the full resolution of the ADC.

.

Digital gain compression

.

Fully differential input range ±VREF

.

No pipeline delay, no cycle latency

.

SPI-compatible serial I/O with daisy-chain mode

.

Internal conversion clock
