LT6110ITS8#TRMPBF

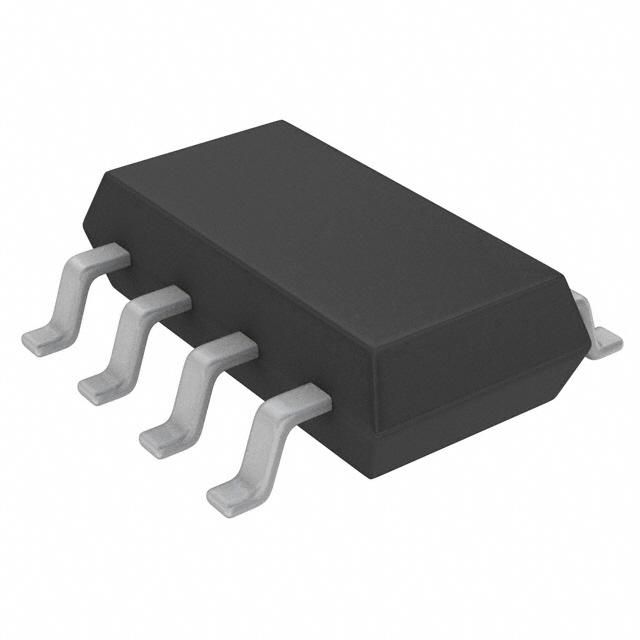

LINEAR TECHNOLOGY  LT6110ITS8#TRMPBF  芯片, 电缆/电线损耗补偿, 8TSOT23

The is a precision High Side Current Sense IC with a current mode output, designed for controlling the output voltage of an adjustable power supply or voltage regulator. This can be used to compensate for drops in voltage at a remote load due to resistance in a wire, trace or cable. The LT6110 monitors load current via a series-connected internal or external sense resistor. Two current mode outputs, one sinking and one sourcing, are provided that is proportional to the load current. This allows the LT6110 to adjust the output voltage of a wide variety of regulators. Either output may be used to monitor the load current. Low DC offset allows for the use of a small sense resistor, as well as precise control of small variations in wire voltage drop.

.

Improve voltage regulation to a remote load by 10x

.

Ideal for resistor-adjustable voltage regulators

.

Gain configurable with a single resistor

.

Integrated 20mR sense resistor for up to 3A

.

Ability to use an external sense resistor

.

300µV Maximum input offset voltage

.

Output current accuracy of 1% maximum

.

30µA Maximum supply current

.

Green product and no Sb/Br
