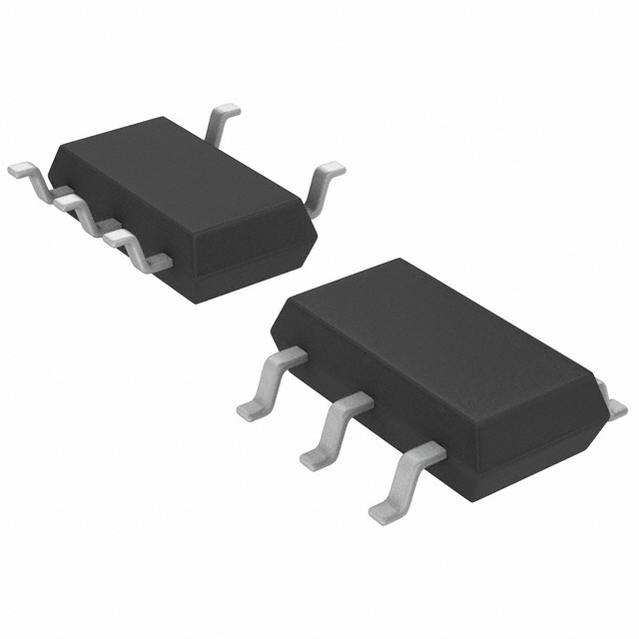

LINEAR TECHNOLOGY LT6202IS5#TRMPBF 运算放大器, 单路, 100 MHz, 1个放大器, 25 V/µs, 2.5V 至 12.6V, TSOT-23, 5 引脚
The is a single low noise rail-to-rail input and output unity gain stable Operational Amplifier that feature 1.9nV/√Hz noise voltage and draw only 2.5mA of supply current per amplifier. The amplifier combine very low noise and supply current with a 100MHz gain bandwidth product, a 25V/µs slew rate and are optimized for low supply signal conditioning systems. The amplifier maintains their performance for supplies from 2.5 to 12.6V and are specified at 3, 5 and ±5V supplies. Harmonic distortion is less than -80dBc at 1MHz making these amplifiers suitable in low power data acquisition systems.
供电电流 2.8 mA
电路数 1
针脚数 5
带宽 100 MHz
转换速率 25.0 V/μs
增益频宽积 100 MHz
输入补偿电压 2.6 mV
输入偏置电流 3.8 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
增益带宽 100 MHz
电源电压 2.5V ~ 12.6V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
封装 TSOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, 信号处理, Signal Processing, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT6202IS5#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT6202IS5#PBF 凌力尔特 | 完全替代 | LT6202IS5#TRMPBF和LT6202IS5#PBF的区别 |
LT6202CS5#TRMPBF 凌力尔特 | 类似代替 | LT6202IS5#TRMPBF和LT6202CS5#TRMPBF的区别 |
LT6202IS5#TRPBF 凌力尔特 | 类似代替 | LT6202IS5#TRMPBF和LT6202IS5#TRPBF的区别 |
